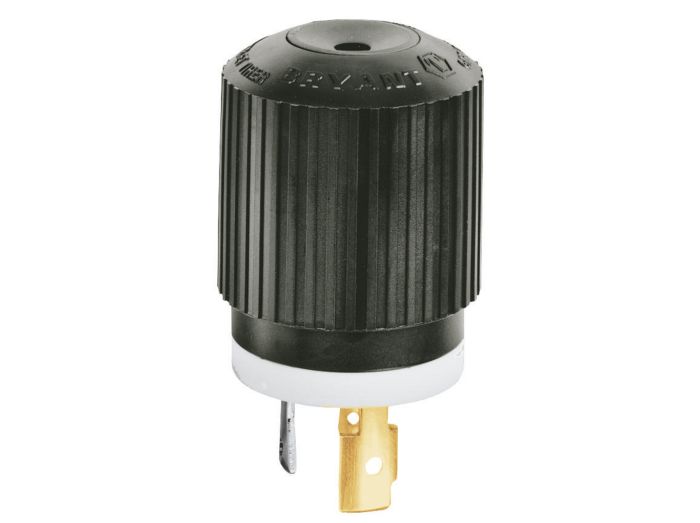

Bryant 71030np Locking Plug Nm L10-30p

Product Description

The BRYANT 71030NP locking plug is an industrial male plug with a 30A 125/250V rating. It features a 3-pole, 3-wire non-grounding configuration and screw terminals. The hand grip has a wide-rib, non-slip design, and the plug face is configuration-specific to prevent contaminant infiltration.

• Hand grip features wide-rib, non-slip design
• Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
• Captive, combination Slot/Phillips assembly screws

Product Highlights

This Bryant locking plug is designed for heavy-duty industrial applications, ensuring secure cord retention and durability.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71030NP

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 71030NP
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plug
• UPC: 781786692725
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L10-30P
• Cord Type: All Listed Portables
• Brand: BRYANT
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Manufacturer Catalog Number: 71030NP
• Description: LKG PLUG, 30A 125/250V, L10-30P,B/W
• UNSPSC: 39121403
• de Part Number: BRY71030NP
