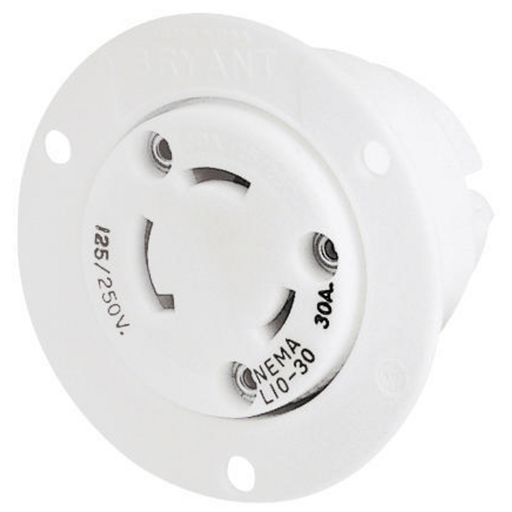

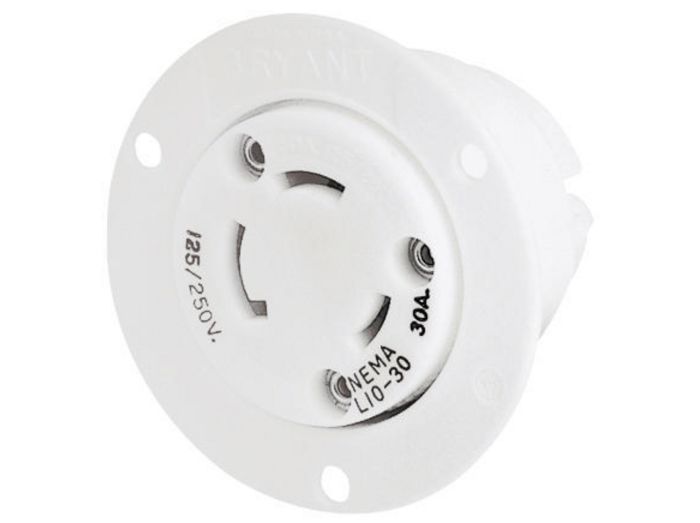

Bryant 71030ER Flanged Receptacle 30A 125/250V L10-30R

Product Description

The BRYANT 71030ER is an industrial flanged receptacle, designed for locking devices. Rated at 30A and 125/250V AC, it features a 3-pole, 3-wire non-grounding configuration and L10-30R NEMA rating. The receptacle has screw terminals and a thermoplastic construction.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Industrial grade flanged receptacle with robust thermoplastic build and easy backwired terminations.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 71030ER
• Country of Origin: United States

Technical Specifications

• Catalog Number: 71030ER
• Application: Extra Heavy Duty Industrial Specification Grade
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 30A Flanged Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Type: Flanged Receptacle
• UPC: 781786692602
• Amperage Rating: 30 A
• Connectivity: Terminal Screws
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Phase: Single Phase
• Voltage Rating: 125/250 VAC
• Voltage Rating Description: 125/250V AC
• Number Of Poles: 3-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L10-30R
• Manufacturer Part Number: 71030ER
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC, 250 VAC
• Body Type: Straight
• Connection Type: Flanged Outlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Part #: 71030ER
• Category: Plug/Receptacle
• Country of Origin: United States
• Description - Invoice: LKG FLG-RCPT, 30A 125/250V, L10-30R,BK
• Harmonization Code: 8536694020
• MSDS Flag: No
• Special Features: Standard Product
• Class Code: A08
• Freight Class Code: 06168002
• Image Actual Or Representative: A
• Sub Class Code: A08A172
• Base Unit of Measure: EA
• Lowest Level UOM: Each
• Certifications: EU RoHS Indicator
