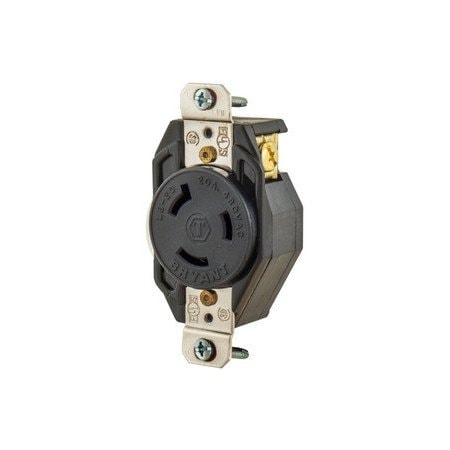

Bryant 70930FR Flush Receptacle Nema L9-30R

Product Description

The Bryant 70930FR flush receptacle features a NEMA L9-30R configuration. This industrial, flush receptacle is rated for 30A and 600V AC, with a 2-pole, 3-wire grounding design. It utilizes screw terminals and is constructed from nylon.

• NEMA L9-30R configuration
• Rated for 30A and 600V AC
• Flush mounting

Product Highlights

This locking receptacle is ideal for industrial applications requiring a secure and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70930FR
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 70930FR
• Current Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 600 VAC
• Body Type: Straight
• Connection Type: Receptacle
• NEMA Configuration: L9-30R
• Watertight: No
• Isolated Ground: No
• Color: Black
• Approvals: CSA, UL
• Mounting: Flush
• Material: Nylon
• Face OD: 1.56 in
• Item: Locking Receptacle
• Voltage Rating: 600V AC
• Phase: Single
• Wire Connection Type: Screw Terminals
• Grounding: Grounded
• Housing Color: Black
• Mount Type: Flush
• Cover Type: No Cover
• Standards: CSA Certified, UL Listed
• Flange Type: Non-Flanged
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Type: Single Locking
