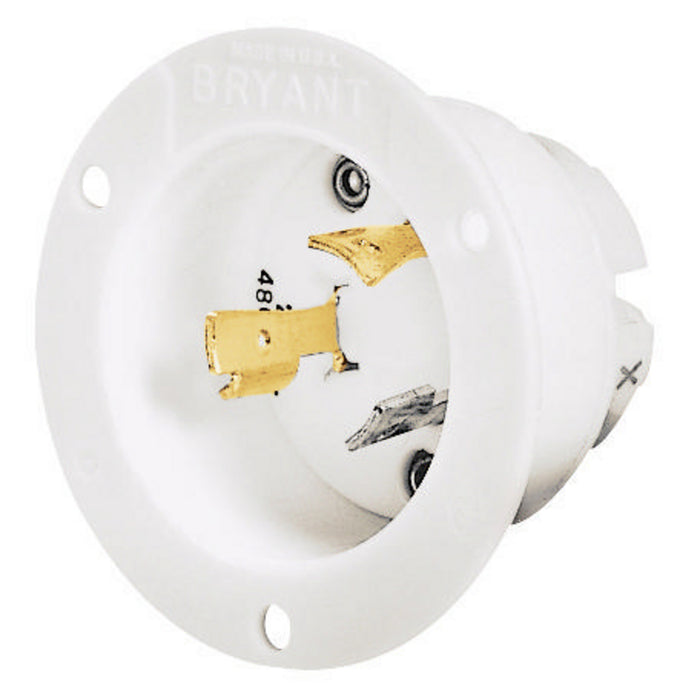

Bryant 70820MB Flanged Inlet 20A 480V L8-20P

Product Description

The BRYANT 70820MB is an industrial flanged inlet designed for heavy-duty applications. Rated at 20A and 480V AC, this 2-pole, 3-wire grounding inlet features a L8-20P NEMA rating and screw terminals. Constructed from impact-resistant thermoplastic, it is suitable for indoor dry environments.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Ideal for industrial use, this flanged inlet provides a secure and reliable connection for equipment.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70820MB

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 70820MB
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• UPC: 781786690868
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Dielectric Strength: Withstands 3000V Minimum in
• Voltage Rating: 480 VAC
• Voltage Rating Description: 480V AC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L8-20P
• Product Name: Bryant Locking Flanged Inlet 20A 480V L8-20P White (70820MB)
• Brand: Bryant
• SKU: 70820MB
• Voltage: 480
• Housing Color: White
• Mfr. Part Number: 70820MB
