Bryant 70720NC Locking Connector 20A

Product Description

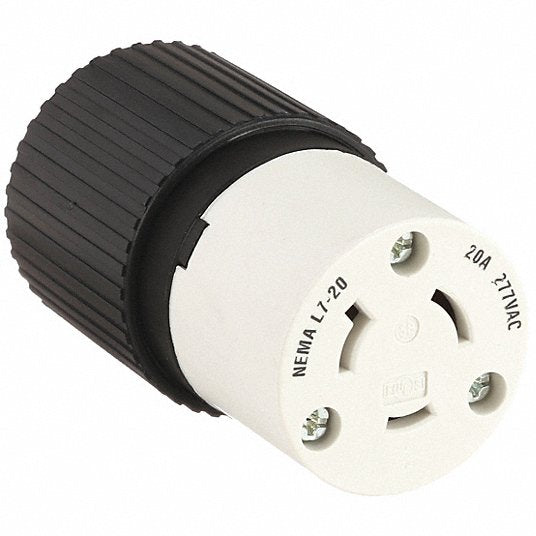

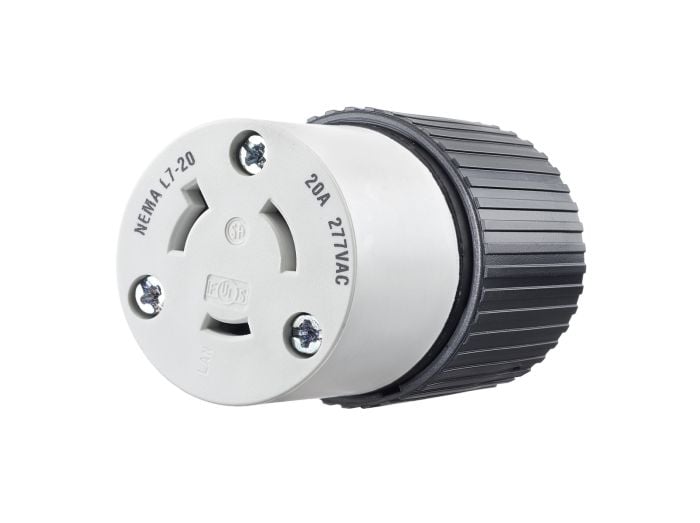

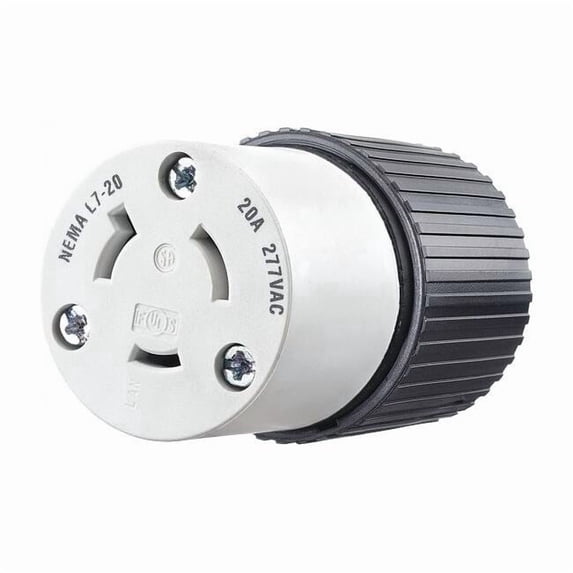

The BRYANT 70720NC is a female nylon connector body designed for industrial use. This locking connector is rated for 20A and 277V AC, featuring a 2-pole, 3-wire grounding configuration. It utilizes screw terminals for secure connections and is suitable for indoor, dry environments.

• Terminations with screws that tighten down on conductors
• Impact-Resistant
• Face and body feature alignment

Product Highlights

This locking connector makes inline connections with plugs to supply equipment with power.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70720NC
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: 70720NC
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 277 VAC
• Body Type: Straight
• Connection Type: Connector
• NEMA Configuration: L7-20R
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0 lbs
• Gross Weight: 0.35 lbs
• Brand: BRYANT
• Cap Type: No Cap or Cover
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Material: Nylon
• IP Rating: IP20
• Maximum Operating Temperature: 75 °C
• Maximum Wire Size: 8 AWG
• Midget Locking: No
• Minimum Operating Temperature: -40 °F
• Minimum Wire Size: 18 AWG
• NEMA Enclosure Rating: Not Rated
• Overall Length: 2.13 in
• Phase: Single
• Polarized: Yes
• Power Indicating Light: No
• Resistance Properties: Chemical Resistant; Impact Resistant
• Shrouded: No
• Standards: CSA Certified; UL Listed
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121421
• Amps: 20 Amps
• Volts: 277 VAC
• Has nrtl listing certification: N
• Housing Color: Black; White
• Type: Plug/Connector/Adapter Accessories
• Country of Origin: China
