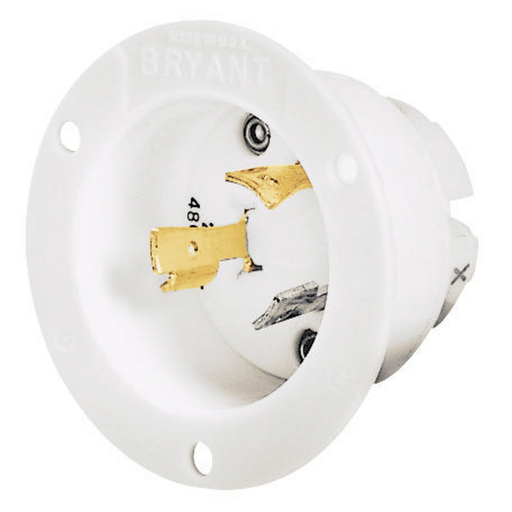

Bryant 70720MB Flanged Inlet Locking Device 20A 277V AC

Product Description

The BRYANT 70720MB is an industrial flanged inlet locking device. Rated at 20A and 277V AC, this 2-pole, 3-wire grounding inlet features screw terminals and impact resistant thermoplastic construction. Designed for extra heavy-duty industrial applications and indoor dry environments.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Ideal for industrial applications requiring a robust and reliable flanged inlet.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70720MB
• Country of Origin: Puerto Rico

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 70720MB
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 20A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• UPC: 781786690066
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Dielectric Strength: Withstands 3000V Minimum in
• Voltage Rating: 277 VAC
• Voltage Rating Description: 277V AC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L7-20P
• Mfrcode: BRYANT
• MFR UNSPSC: 39121400
• GROUND TYPE: GROUNDING
• CONSTRUCTIONAL FEATURE: IMPACT RESISTANT, CHEMICAL RESISTANT
• CONFIGURATION: L7-20
• Country of Origin: Puerto Rico
• Special Features: Standard Product
• Harmonization Code: 8536694020
• MSDS Flag: No
• Class Code: A08
• Freight Class Code: 06168002
• Image Actual Or Representative: A
• Sub Class Code: A08A172
• Base Unit of Measure: EA
