Bryant 70720FR Locking Receptacle 20A 277V AC

Product Description

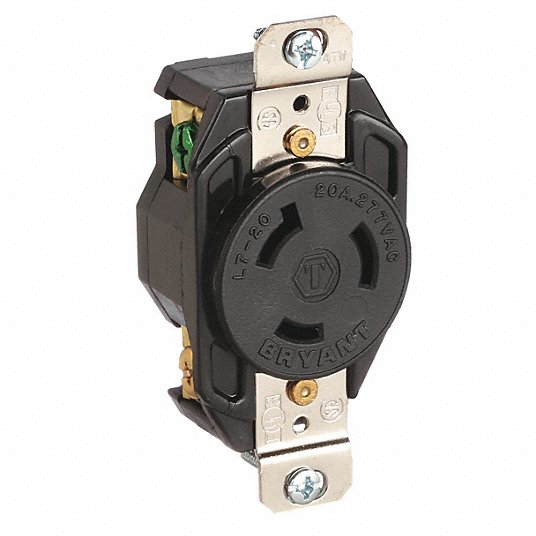

The Bryant 70720FR locking receptacle is an industrial-grade, flush nylon receptacle. Rated for 20A and 277V AC, it features a 2-pole, 3-wire grounding configuration and screw terminals. Designed for extra heavy-duty industrial applications, it ensures reliable and safe electrical connections.

• Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
• Heavy duty mounting straps are nickel-plated to resist corrosion, wide Width design assures secure assembly
• NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade locking receptacle with robust construction and reliable performance.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70720FR
• Country of Origin: US

Technical Specifications

• Manufacturer: Bryant
• Manufacturer #: 70720FR
• Brand: BRYANT
• Color: Black
• Material: Composite
• Voltage: 277 VAC
• Amperage: 20 A
• Connector Type: Plug-In
• Total Power Outlets: 1
• Specification Met: NEMA
• Item Type Name: Electrical Receptacle, Electrical Outlet
• Application: Extra Heavy Duty Industrial Specification Grade
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Single Nylon Receptacle
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Single Receptacle
• Type: Receptacle
• Dimensions: 3.28 in x 1.70 in x 1.24 in
• Height: 1.24 in
• Length: 3.28 in
• Width: 1.7 in
• Connectivity: Terminal Screws
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating Description: 277V AC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Industry Standard(s): WR Rating
• Nema Rating: L7-20R
• Standards - RoHS Compliance Status: CM
• Compatible Series: Twist Lock
• Connection Orientation: Straight
• Contact Material: Copper Alloy
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Environment: Dry
• For Location: Indoor
• For Maximum Cable Diameter: 0.655 in
• For Minimum Cable Diameter: 0.3 in
• Grounding: Grounded
• Horsepower Rating: 2 hp
• Housing Color: Black
• Housing Material: Nylon
• Hub Type: Dead End
• IP Rating: Not Rated
• Includes Mounting Hardware: Yes
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.28 in
• Mount Type: Flush
• NEMA Configuration: L7-20
• NEMA Enclosure Rating: Not Rated
• NEMA Receptacle Configuration: L7-20R
• Number of Outlets: 1
• Polarized: Yes
• Resistance Properties: Corrosion Resistant
• Shrouded: No
• Standards: UL 498
• Wire Connection Type: Screw Terminals
• Wiring Style: Standard
• UNSPSC: 39121406
