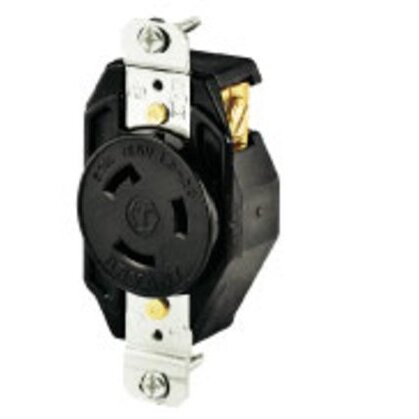

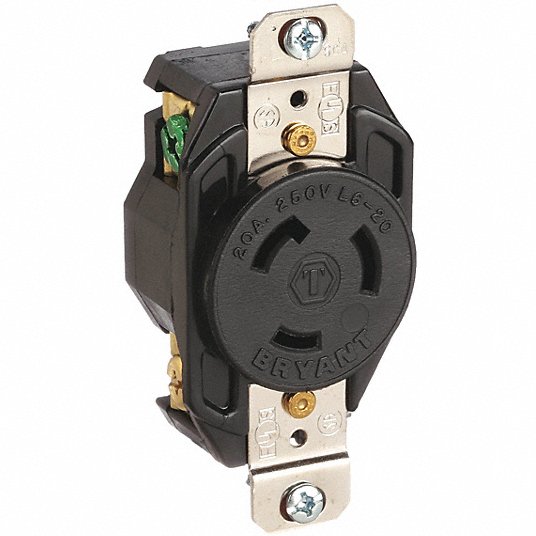

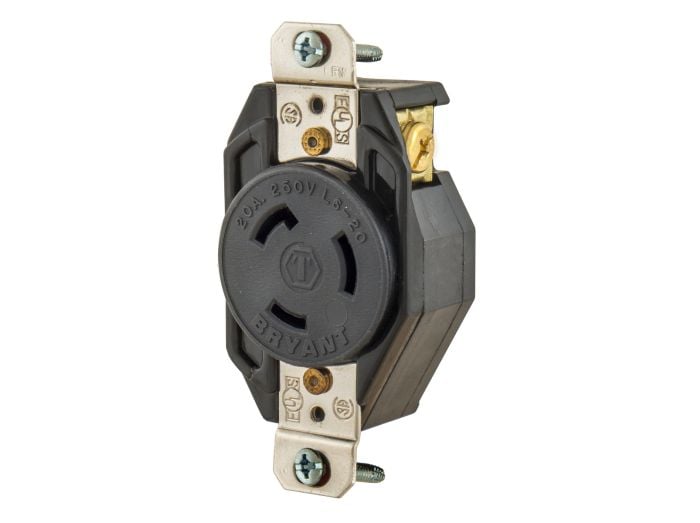

Bryant 70620FR Locking Receptacle 20A 250V L6-20R

HUBBELL
Brand: HUBBELL
SKU: 70620FR
Availability: In Stock

Ships same day if ordered by 12 pm
$49.26
$49.26
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BRYANT 70620FR is an industrial-grade nylon flush receptacle, designed for extra heavy-duty applications. Rated at 20A and 250V, this 2-pole, 3-wire grounding receptacle features screw terminals for secure connectivity. It is suitable for indoor dry environments and corrosion resistant.

  • Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
  • Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
  • NEMA rating and configuration are molded into face for easy identification

Product Highlights

Industrial grade locking receptacle with robust construction and reliable performance, ideal for industrial and commercial applications requiring secure power connections.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 70620FR
  • Country of Origin: China
Technical Specifications
Application
Extra Heavy Duty Industrial Specification Grade
Catalog Number
70620FR
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Item Type
20A Single Nylon Receptacle
Material
Composite
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Bryant
Style
Single Receptacle
Type
Receptacle
UPC
781786689237
Dimensions
3.28 in x 1.70 in x 1.24 in
Height
1.24 in
Length
3.28 in
Width
1.7 in
Amperage Rating
20 A
Connectivity
Terminal Screws
Current Amperage Description
20 Amp
Current Rating
20 A
Phase
Single Phase
Voltage Rating
250V AC
Voltage Rating Description
250V
Number Of Poles
2-Pole
Number Of Wires
3-Wire
Wire Size
#14 AWG to #8 AWG
Nema Rating
L6-20R
Standards - RoHS Compliance Status
CM
Non-Domestic Product
No
Brand
BRYANT
Custom Bundle
No
MPN
70620FR
Modified Item
No
Country of Origin
US
Category
Business & Industrial
Compatible Series
Twist Lock
Connection Orientation
Straight
Contact Material
Copper Alloy
Flange Material
Composite
Flange Type
Non-Flanged
For Environment
Dry
For Location
Indoor
For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.3 in
Grounding
Grounded
Horsepower Rating
2 hp
Housing Color
Black
Housing Material
Nylon
Hub Type
Dead End
IP Rating
Not Rated
Includes Mounting Hardware
Yes
Maximum Wire Size
8 AWG
Midget Locking
No
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.28 in
Mount Type
Flush
NEMA Configuration
L6-20
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
L6-20R
Number of Outlets
1
Polarized
Yes
Resistance Properties
Corrosion Resistant
Shrouded
No
Standards
UL 498
Wire Connection Type
Screw Terminals
Wiring Style
Standard
UNSPSC
39121406
Manufacturer
Bryant Electric
Family Series
Bryant Electric Plugs & Receptacles
Voltage
250 VAC
Body Type
Straight
Connection Type
Receptacle
Watertight
No
Isolated Ground
No
Color
Black
Approvals
CSA, UL
Cord Diameter
0.3 to 0.655 in
Grade
Industrial/Specification
Horsepower
2 hp
Manufacturer Name
Hubbell
Temperature Rating
-40 to 60 deg C
Terminal Type
Screw
