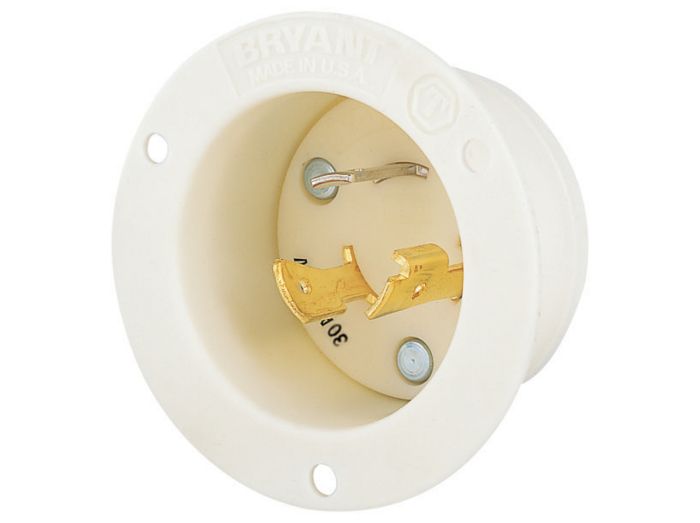

Bryant 70530MB Flanged Inlet 30A 125V L5-30P

Product Description

The BRYANT 70530MB is an industrial flanged inlet designed for locking devices, rated at 30A and 125V, with a 2-pole, 3-wire grounding configuration and L5-30P NEMA rating. Constructed from impact-resistant thermoplastic, it ensures durability in demanding environments. The inlet features screw terminals and backwired terminations for ease of installation.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws

Product Highlights

Durable thermoplastic flanged inlet with screw terminals for industrial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70530MB
• Country of Origin: United States

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 70530MB
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 30A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
• Type: Locking Flanged Inlet
• UPC: 781786688766
• Dimensions: 2.88 in x 2.88 in x 2.02 in
• Height: 2.02 in
• Length: 2.88 in
• Width: 2.88 in
• Amperage Rating: 30 A
• Connectivity: Screw Terminals
• Current Amperage Description: 30 Amp
• Current Rating: 30 A
• Dielectric Strength: Withstands 3500V
• Voltage Rating: 125 V
• Voltage Rating Description: 125V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L5-30P
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Flanged Inlet
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0.24 lbs
• Gross Weight: 0.15 lbs
• Ground: Grounding
