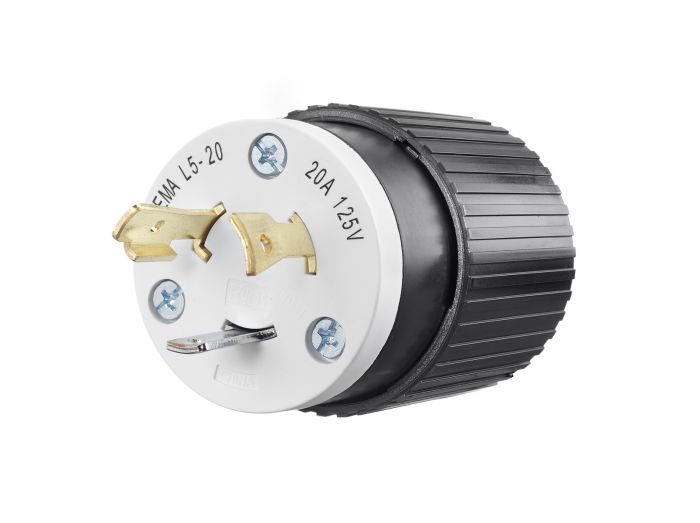

Bryant 70520NP Locking Plug 20A 125V

Product Description

The Bryant 70520NP locking plug is an industrial-grade male nylon plug. Rated at 20A and 125V, this 2-pole, 3-wire grounding plug features screw terminals and a L5-20P NEMA rating. The hand grip has a wide-rib, non-slip design, and the plug face is configuration-specific to prevent contamination.

• Wide-rib, non-slip hand grip
• Configuration-specific plug face prevents contamination
• Internal Triple Gripper cord grip provides secure cord retention

Product Highlights

This Bryant locking plug is ideal for heavy-duty industrial applications requiring a secure and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70520NP
• Country of Origin: CN

Technical Specifications

• Manufacturer: Bryant Electric
• Manufacturer #: 70520NP
• Parts Town #: BYNT70520NP
• Replaced by PT #: CRR70520NP
• Units: Each
• Application: Extra Heavy Duty Industrial
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 20A Triple Gripper Nylon Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Internal Cord Clamp
• Type: Plugs
• UPC: 781786688629
• Amperage Rating: 20 A
• Connectivity: Screw Terminals
• Current Amperage Description: 20 Amp
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #8 AWG
• Nema Rating: L5-20P
• Standards - RoHS Compliance Status: CM
• Cord Type: All Listed Portables
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 125 VAC
• Body Type: Straight
• Connection Type: Plug
• Watertight: No
• Isolated Ground: No
• Approvals: CSA, UL
• Net Weight: 0.255 lbs
• Gross Weight: 0.25 lbs
• Condition: New
• Country of Origin: CN
• Power Source: N/A
• Battery Included: No
• Bundle Description: No
• Custom Bundle: No
• California Prop 65 Warning: N
• Category: Industrial Automation & Motion Controls
• Model: 70520Np 20A
• Cable Length: N/A
