Bryant 70520NC Locking Connector 20A 125V L5-20R 50 Pack

Product Description

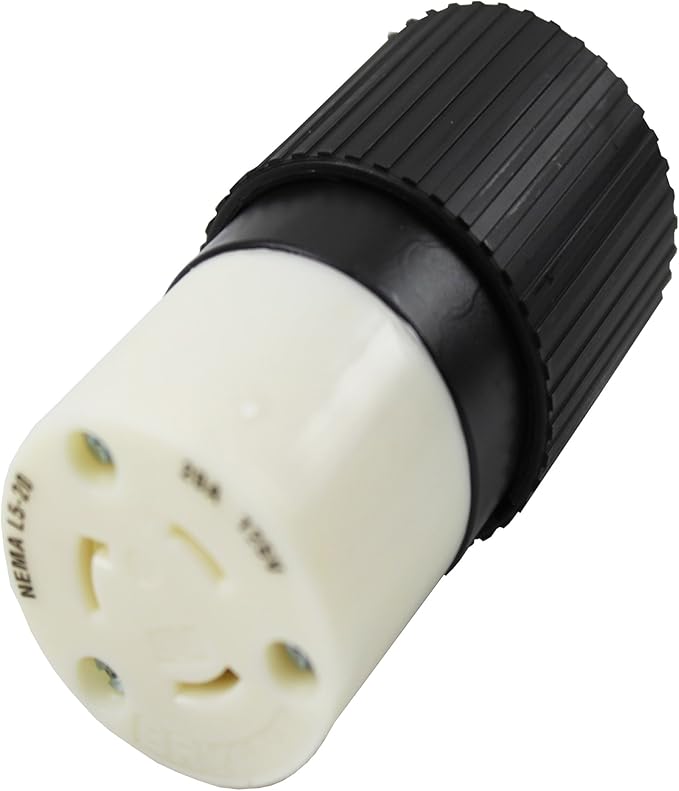

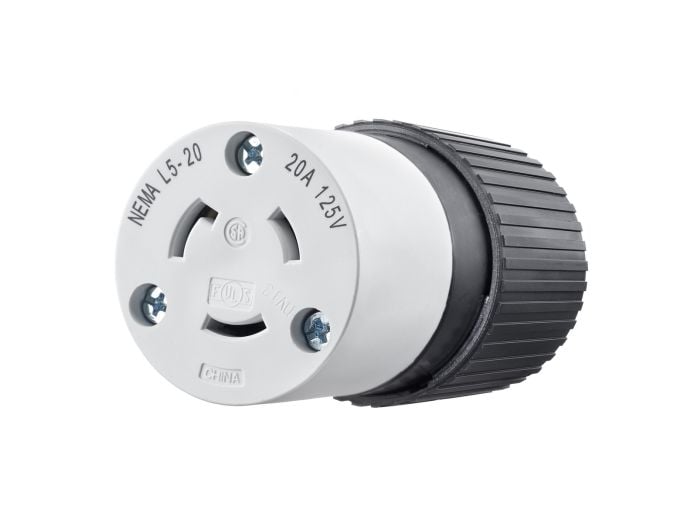

The Bryant 70520NC is an industrial heavy-duty locking blade connector. This female nylon connector body operates at 20A and 125V, featuring a 2-pole, 3-wire grounding configuration. With a NEMA L5-20R configuration and screw terminal, it accepts cord sizes 0.3-0.95 inches and comes in a black and white nylon housing.

• NEMA Connector: L5-20
• L5-20R 20A 125V Twist Lock Female Connector
• Made By Bryant / Hubbell

Product Highlights

Industrial heavy-duty locking blade connector with nylon housing, suitable for various industrial applications requiring secure and reliable connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 70520NC

Technical Specifications

• Manufacturer Part Number: 70520NC
• Brand: Bryant
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 125 VAC
• Body Type: Straight
• ConnectionType: Connector
• NEMA Configuration: L5-20R
• Watertight: No
• Isolated Ground: No
• Color: Black, White
• Approvals: CSA, UL
• Category: Connector/Terminal/Pin
• Specification met: NEMA
• Amperage: 20 Amps
• UPC: 616086518065
• Type: Electrical Plug
• Features: Locking Plug
• Maximum Input Current: 16 -20 A
• Output Voltage: 125 V
