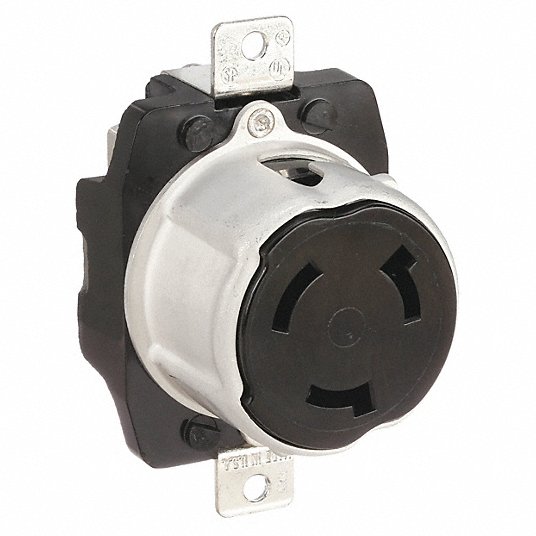

Bryant 6369CR Locking Receptacle 50A

Product Description

The Bryant 6369CR locking receptacle provides a fixed power outlet for connections that do not follow standard NEMA configurations. It features a non-standard socket design that connects with compatible plugs or connectors. This receptacle is used in industrial and commercial equipment where power interfaces fall outside conventional NEMA formats.

• Current Rating: 50 A
• Voltage Rating: 125/250V AC
• Mount Type: Flush

Product Highlights

The Bryant locking receptacle is marine grade, corrosion and moisture resistant, and suitable for industrial and commercial applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 6369CR
• Country of Origin: USA

Technical Specifications

• Brand: BRYANT
• Manufacturer Part Number: 6369CR
• Connection Orientation: Straight
• Current Rating: 50 A
• Flange Material: Composite
• Flange Type: Non-Flanged
• For Maximum Cable Diameter: 1.1 in
• For Minimum Cable Diameter: 0.83 in
• Grade: Marine
• Grounding: Grounded
• Horsepower Rating: 7 hp
• Housing Color: Black
• Housing Material: Thermoset
• Hub Type: Dead End
• IP Rating: Not Rated
• Midget Locking: No
• Mount Hole Center-to-Center Height: 3.28 in
• Mount Type: Flush
• NEMA Configuration: Non-NEMA
• NEMA Enclosure Rating: Not Rated
• Number of Gangs: 1
• Number of Outlets: 1
• Number of Poles: 3
• Number of Wires: 4
• Phase: Single
• Polarized: Yes
• Resistance Properties: Moisture Resistant
• Shrouded: No
• Standards: UL 498
• Voltage Rating: 125/250V AC
• Wiring Style: Standard
• Current Type: AC
• Model: 6369CR
• Mounting Type: Flush Mount
• Material: Thermoset
• Amps: 50
• Special Features: Corrosion resistant
