Bryant 60002d Disconnect Switch 60A 600V 2 Pole

Product Description

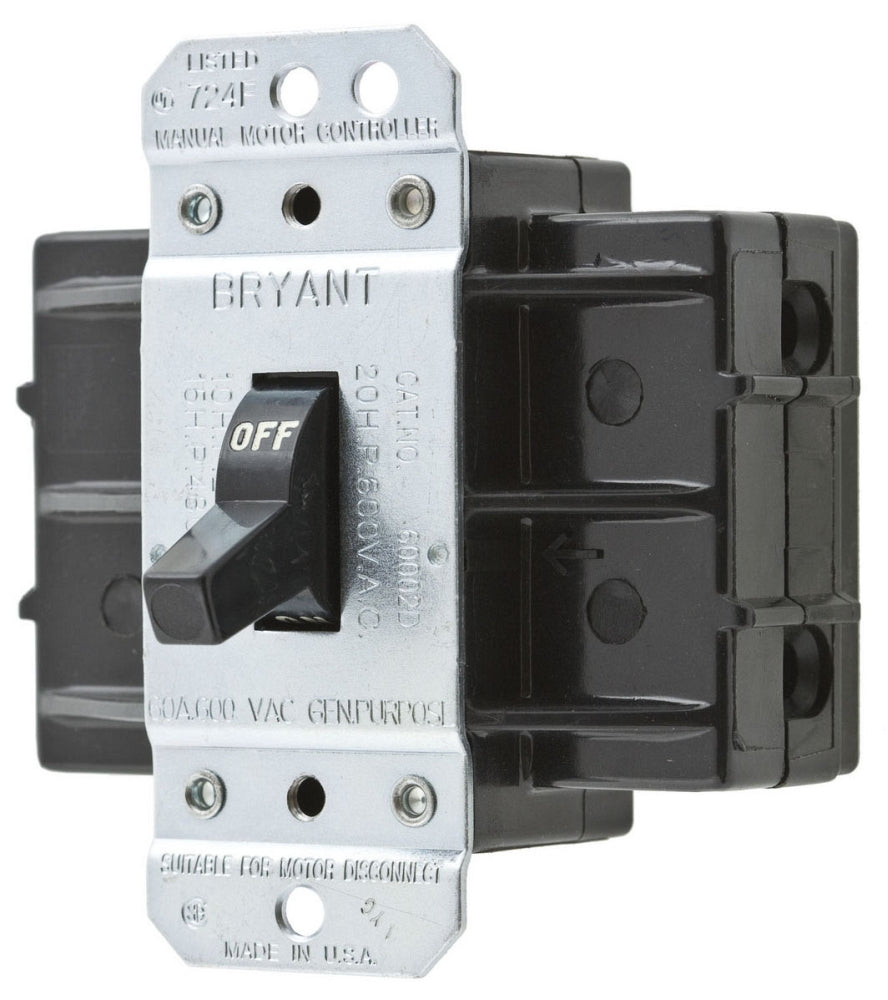

The BRYANT 60002D is a double-pole, manual motor disconnect switch rated for 60 amperes at up to 600 volts AC. Designed for industrial-grade applications, it features a screw terminal connection and side-wiring configuration. The switch carries UL 508 and CSA C22.2 approvals, making it suitable for use in motor control circuits and panel installations. It accepts wire sizes from 14 to 4 AWG and includes provision for Class J fuses, with an 80 amp fuse clip current rating. Licensed electricians install this switch as part of motor branch-circuit disconnect requirements in commercial and industrial settings.

This disconnect switch is intended for use in box or panel mounting configurations where a motor branch-circuit disconnect is required. It is well-suited for three-phase and single-phase motor control applications in commercial and industrial environments. The double-pole design handles 10 HP at 240 VAC, 15 HP at 480 VAC, and 20 HP at 600 VAC, covering a broad range of motor sizes commonly found in HVAC, pumping, and manufacturing equipment installations.

Key Features

• Double-pole design rated 60A at 240, 480, and 600 VAC
• Class J fuse provision with 80A fuse clip current rating
• Accepts 14 to 4 AWG wire via screw terminals, side-wired only
• Box and panel mounting compatibility
• UL 508 and CSA C22.2 listed for motor control applications
• Horsepower ratings: 10 HP at 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC

Compatibility

Designed as an OEM-style manual motor disconnect switch for box or panel mounting in industrial motor control installations requiring a double-pole, 60A, 600V disconnect with Class J fuse provision.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lockout/tagout the circuit before installation or servicing. This switch is side-wired only and does not support top or bottom wiring entry. Verify motor HP and voltage requirements match the switch ratings before completing the installation.

Technical Specifications

• Current Rating: 60 amperes
• Voltage Rating: 240/480/600 VAC
• Poles: 2
• Power Rating: 10 HP at 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC
• Fuse Clip Current Rating: 80 amperes
• Fuse Type: Class J
• Wire Size Range: 14 to 4 AWG
• Terminal Type: Screw, side-wired only
• Mounting Type: Box/Panel
• Certifications: UL 508, CSA C22.2
• Color: Black

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 60002d
