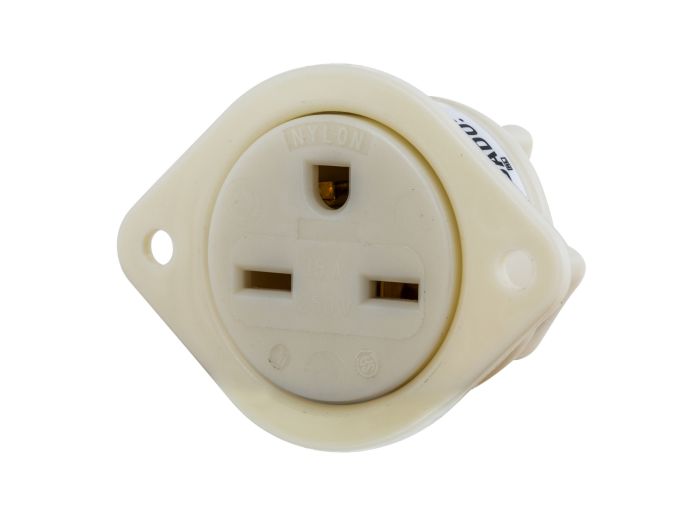

Bryant 5679 Flanged Receptacle 15A 250V Single Pack

Product Description

The BRYANT 5679 is a flanged, industrial-grade receptacle designed for commercial and industrial applications. Rated at 15A and 250V, this 2-pole, 3-wire grounding receptacle features a 6-15P configuration. It is suitable for indoor dry environments when protected by additional means.

• Flanged
• Industrial Grade
• 15A 250V

Product Highlights

This flanged receptacle is ideal for industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5679
• Country of Origin: United States

Technical Specifications

• Application: Commercial/Industrial
• Catalog Number: 5679
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Smooth Face
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Type: Flanged Receptacle
• UPC: 781786663909
• Amperage Rating: 15 A
• Current Rating: 15 A
• Voltage Rating: 250 V
• Voltage Rating Description: 250 V
• Number Of Poles: 2
• Number Of Wires: 3
• Nema Rating: 6-15R
• Standards - RoHS Compliance Status: CM
• Grade: General Use
• Horsepower Rating: 1 1/2 hp
• Housing Material: Plastic
• Number of Gangs: 1
• Receptacle Type: Single
• Surge Protection: No Surge Protection
• Wire Connection Type: Screw Terminals
• Connection Orientation: Straight
• For Location: Indoor
• Mount Hole Center-to-Center Height: 2 in
• Mounting Location: Panel
• Polarized: Polarized
• Face Diameter: 1.5 in
• AFCI: No
• GFCI: No GFCI
• Grounding: Grounded
• Housing Colour: White
• Phase: Single
• Resistance Properties: Impact-Resistant
• Cover Type: No Cover
• Flange Type: Flanged
• Market: Commercial, Industrial
• Mount Type: Flush
• Overall Depth: 1.5 in
• Standards: CSA Certified, UL Listed
• Manufacturer Part Number: 5679
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 250 VAC
• Connection Type: Flanged Outlet
• NEMA Configuration: 6-15P
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Specification Grade
• Brand: BRYANT
• Model: 5679
• MPN: 5679
• Country of Origin: United States
• Amps: 15A
• Body Material: Nylon
• Depth: 1.47"
• Face Dia.: 1.47"
• Hp: 1 1/2 hp
• Hp Rating: 1 1/2 hp
• Mounting Type: Flush
• Wire Connection Location: Back
• Wire Connection Types: Screw Terminals
