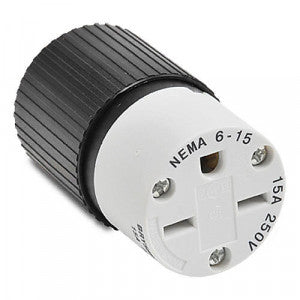

Bryant 5669NC Connector Industrial Grade 15A 250V 6-15R

Product Description

The BRYANT 5669NC is an industrial grade connector, designed for heavy-duty use. Rated at 15A and 250V, this 2-pole, 3-wire grounding connector features a NEMA 6-15R configuration. Constructed with a nylon housing, it accepts cord sizes from 0.3 to 0.65 inches, suitable for industrial and commercial applications.

• Heavy Duty
• Industrial/Commercial Grade
• Straight
• 15A 250V

Product Highlights

Industrial grade connector with 15A and 250V rating for robust and reliable power connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5669NC

Technical Specifications

• Product Name: Bryant Connector Industrial Grade 15A 250V 6-15R Black And White (BRY5669NC)
• Brand: Bryant
• SKU: BRY5669NC
• Mfr. Part Number: BRY5669NC
• UPC Code: #781786005976
• Application: Extra Heavy Duty Industrial Grade
• Catalog Number: BRY5669NC
• Color: Black and white
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: Tech-Spec Triple Gripper
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• Series: Industrial
• Style: Extra Heavy Duty
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
• Type: Connector Body
• UPC: 781786005976
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 250 V AC
• Voltage Rating Description: 250 V
• Conductor Range: #14 AWG to #10 AWG
• Number of Conductors: 3-Wire Grounding
• Number Of Poles: 2
• Number Of Wires: 3
• Nema Rating: 6-15R
• Standards - RoHS Compliance Status: CM
• Watertight: No
• With Cap: No
• NEMA Configuration: 6-15
• Cord Diameter: 0.3 to 0.65in
• Housing Material: Nylon
• DataSheet: https
