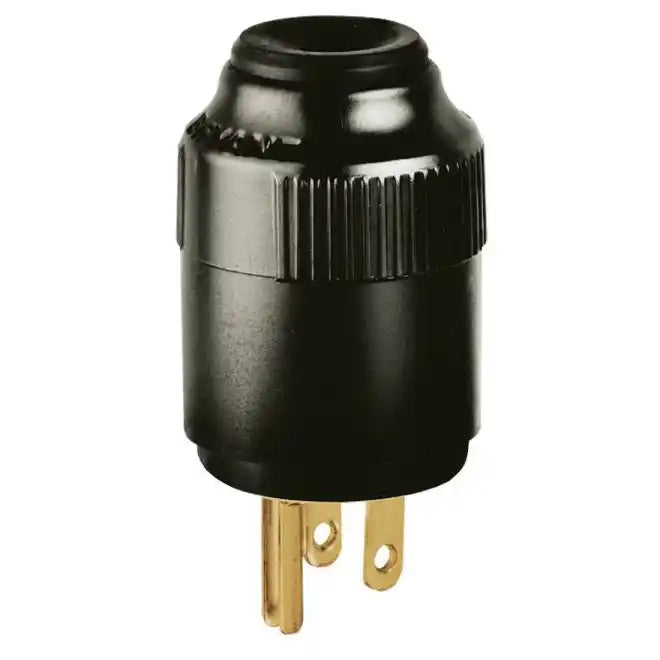

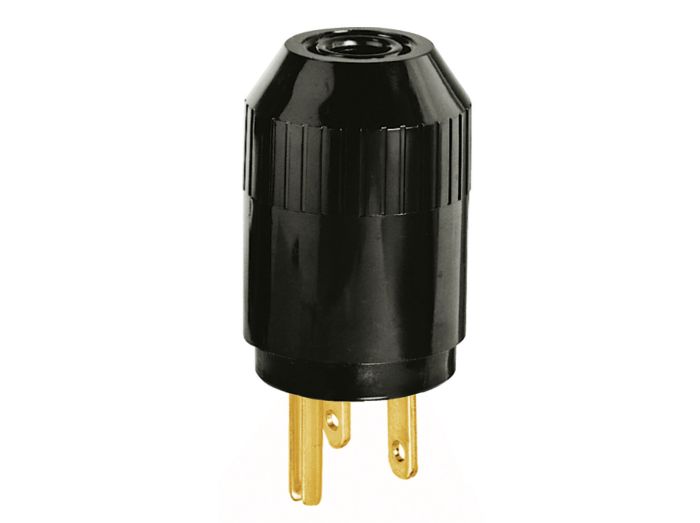

Bryant 5666B 15A 250V Straight Blade Plug

Product Description

The Bryant 5666B is a 15A 250V straight blade plug. This heavy-duty industrial/commercial grade plug features a 2-pole, 3-wire grounding design with a NEMA 6-15P configuration. It is constructed from thermoplastic material and includes an elastomeric dust seal to protect the wiring chamber.

• Rated for 15A and 250V
• Features a NEMA 6-15P configuration
• Constructed from thermoplastic material

Product Highlights

The Bryant straight blade plug is ideal for industrial and commercial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5666B

Technical Specifications

• Material: Thermoplastic
• Type: Standard
• Manufacturer Part Number: 5666B
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Current Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 250 VAC
• Connection Type: Plug
• NEMA Configuration: 6-15P
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Plug Type: Straight Blade
• Rating - Amps: 15A
• Rating - Volts: 250V
• Ground: Grounding
• NEMA: 6-15P
• Cord Diameter: 0.245 - 0.655
• Grade: Industrial
• Manufacturer Alternate Number: 5666-B
• UPC: 7.82E+11
• UL Rating Type: NEMA 6-15
• Rated Current: 15A
• Power Phase: 1-Phase
• Number of Pins/Wires: 3
• Rated Voltage: 250V
• Locking Blade: No
