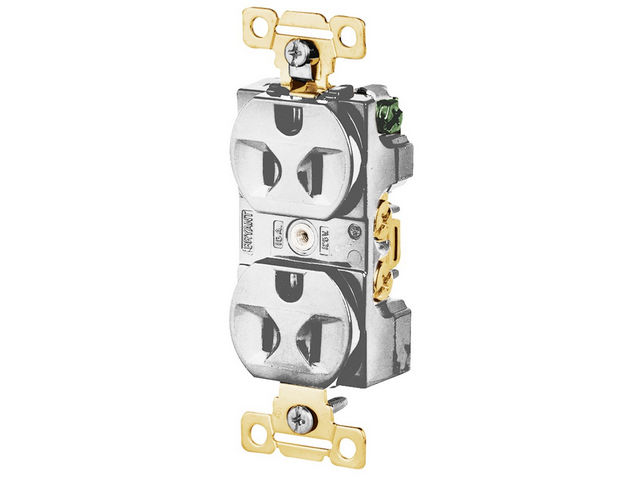

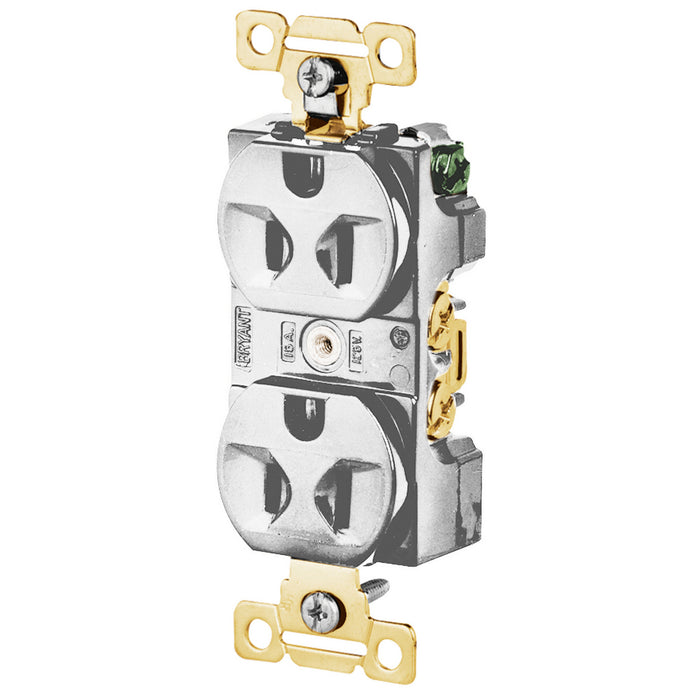

Bryant 5242W Duplex Receptacle-Nema5-15R

Product Description

The Bryant 5242W is a durable duplex receptacle with a NEMA 5-15R configuration. This commercial/industrial grade receptacle is designed for 2-pole, 3-wire grounding and side wiring. Rated for 15A and 125V, it's suitable for a variety of applications.

• Commercial/Industrial Grade
• 2-Pole 3-Wire Grounding
• Side Wired

Product Highlights

Durable and reliable, the Bryant 5242W is ideal for commercial and industrial settings.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 5242W
• Country of Origin: China

Technical Specifications

• Catalog Number: 5242W
• Type: Duplex Receptacle
• Application: Extra Heavy Duty Compact Industrial Specification Grade
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Traditional Duplex
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Heavy Duty
• Style: Finder Groove Face
• UPC: 781786624818
• Amperage Rating: 15 A
• Connectivity: Side Wired Only
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Voltage Rating: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Phase: Single Phase
• Voltage Rating Description: 125 V
• Receptacle Type: Duplex
• Grade: Industrial
• Grounding Style: Grounded
• Wiring Method: Side
• Flanged: No
• Mount Type: Flush
• Body Material: Nylon
• Resistance Features: Impact-Resistant
• Standards: UL Listed; CSA Certified
• Nema Configuration: 5-15R
• UNSPSC Code: 39121406
• Product Service Code: 5935
