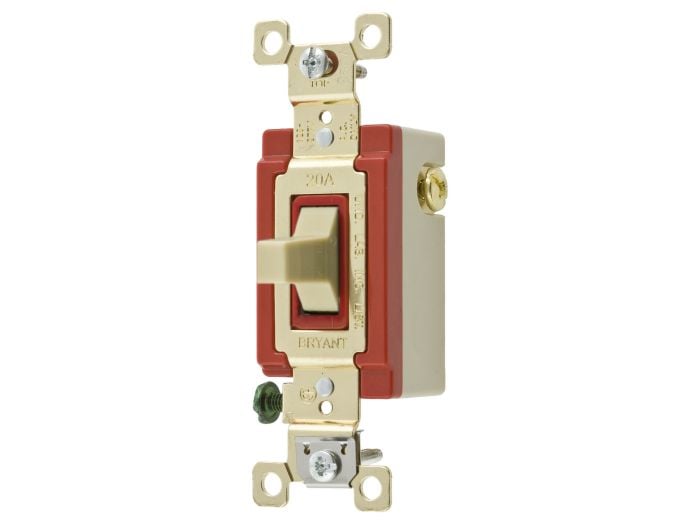

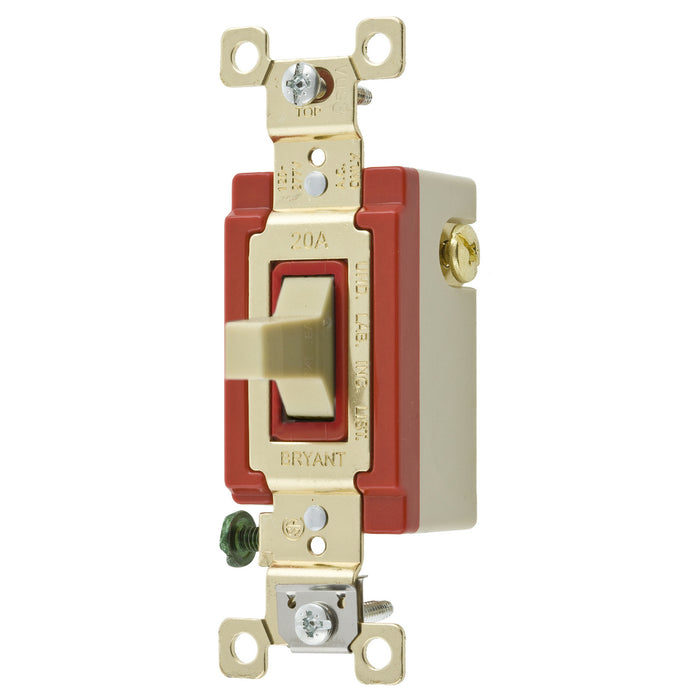

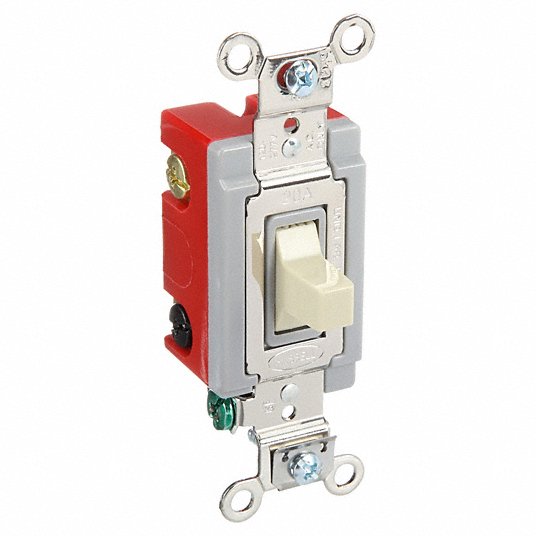

Bryant 4921I Toggle Switch 20A 120/277V

Product Description

The BRYANT 4921I is a toggle switch designed for industrial applications. This momentary single pole-double throw (SPDT) switch is rated for 20A at 120/277V AC and features back and side wiring. It provides power control for electric devices and equipment.

• Momentary Single Pole-Double Throw Center Off
• Back and Side Wired
• Brass and Nickel Plated Steel Ground Terminal

Product Highlights

Industrial grade toggle switch for general purpose AC power control in various electrical devices and equipment.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4921I
• Country of Origin: China

Technical Specifications

• Application: Industrial
• Approval: UL, CSA
• Contact Configuration: SPDT
• Handle Type: Toggle
• Manufacturer Name: Bryant
• Operation Type: Momentary
• Power Rating: 1 HP at 120 VAC, 2 HP at 240/277 VAC
• Type: 3-Position, 2-Circuit
• Wiring: Back, Side
• Catalog Number: 4921I
• Series: Extra Heavy Duty
• Style: Single Pole Double Throw
• UPC: 781786624078
• Amperage Rating: 20 A
• Voltage Rating: 120/277 VAC
• Brand: BRYANT
• Features: Brass and Nickel Plated Steel Ground Terminal
• Horsepower Rating: 2
• Illuminated: No
• Number of Switches: 1
• Pilot Light: No
• Standards: UL/CSA
• Switch Function: Momentary
• Switch Style: Toggle
• Switch Type: Single Pole/Double Throw
• Wire Connection Type: Screw
• Wiring Method: Back/Side
• UNSPSC: 39121507
• Manufacturer Part Number: 4921I
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Industrial
• Switch Configuration: Single Pole
• Voltage: 120 VAC, 277 VAC
• Operator Color: Ivory
• Locking: No
• Approvals: CSA, UL
