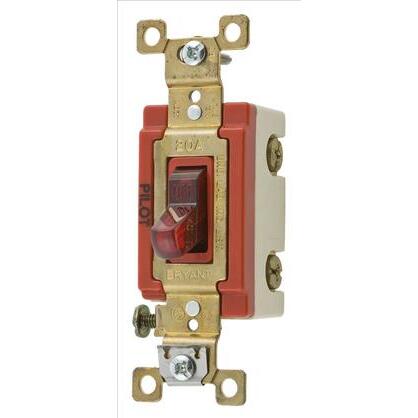

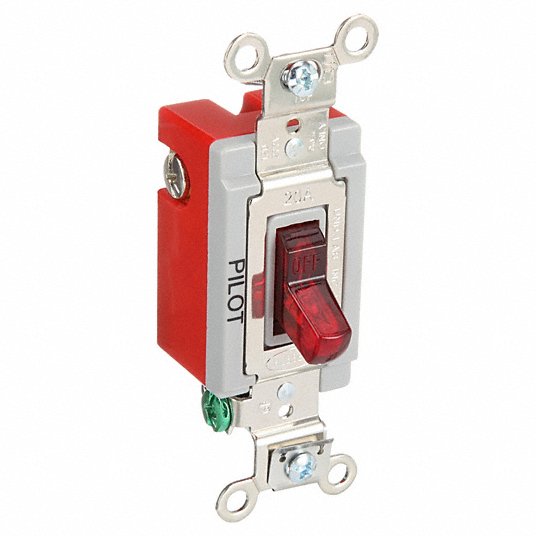

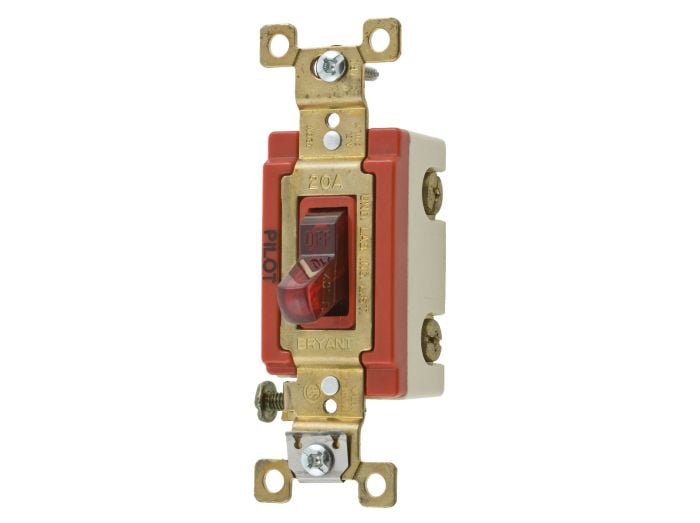

Bryant 4901PLR120 Pilot Light Industrial Grade Toggle Switch 20A 120V AC

Product Description

The BRYANT 4901PLR120 is a pilot light industrial grade toggle switch designed for general purpose AC applications. This single pole switch is rated for 20A at 120V AC and features back and side wiring. It is suitable for controlling electrical devices and equipment such as ceiling fans, lights, outlets, and appliances.

• Toggle switch type
• Rated for 20A 120V AC
• Features back and side wiring

Product Highlights

Industrial grade toggle switch with pilot light for clear on/off indication.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4901PLR120
• Country of Origin: CN

Technical Specifications

• Application: Back and Side Wired
• Catalog Number: 4901PLR120
• Series: Extra Heavy Duty
• Style: Single Pole
• Type: Toggle
• UPC: 781786657908
• Amperage Rating: 20 A
• Current Rating: 20 A
• Voltage Rating: 120 VAC
• Voltage Rating Description: 120 VAC
• Brand: BRYANT
• Features: Brass and Nickel Plated Steel Ground Terminal; Light on with Load on
• Horsepower Rating: 2 hp
• Illuminated: Yes
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: Yes
• Standards: UL/CSA
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: Single Pole
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
• Voltage: 120 VAC
• Operator Color: Red
• Locking: No
• Wiring: Back and Side Wired
• Approvals: CSA, UL
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Industrial
• Switch Configuration: Single Pole
