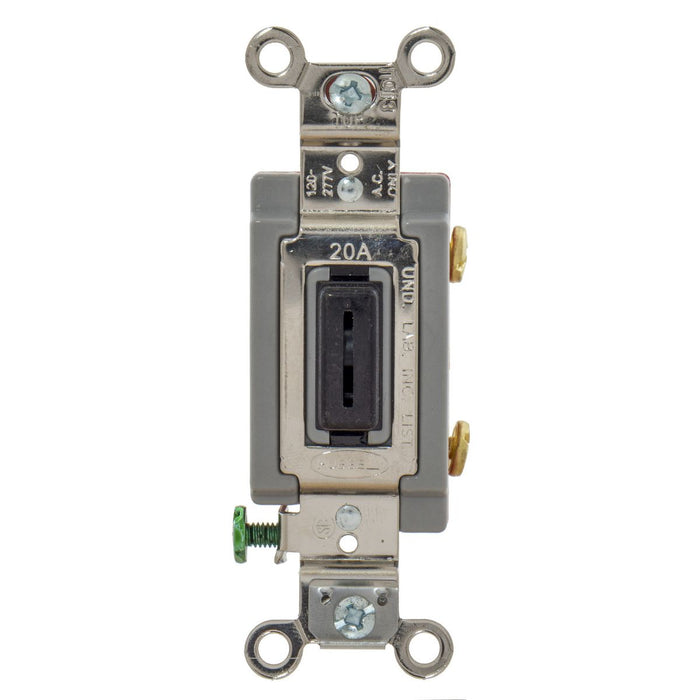

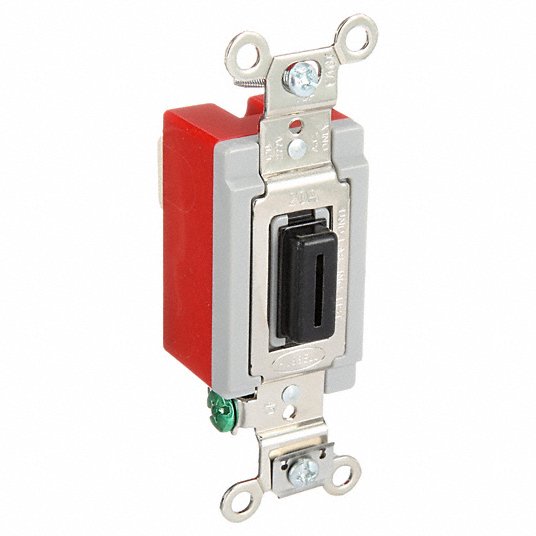

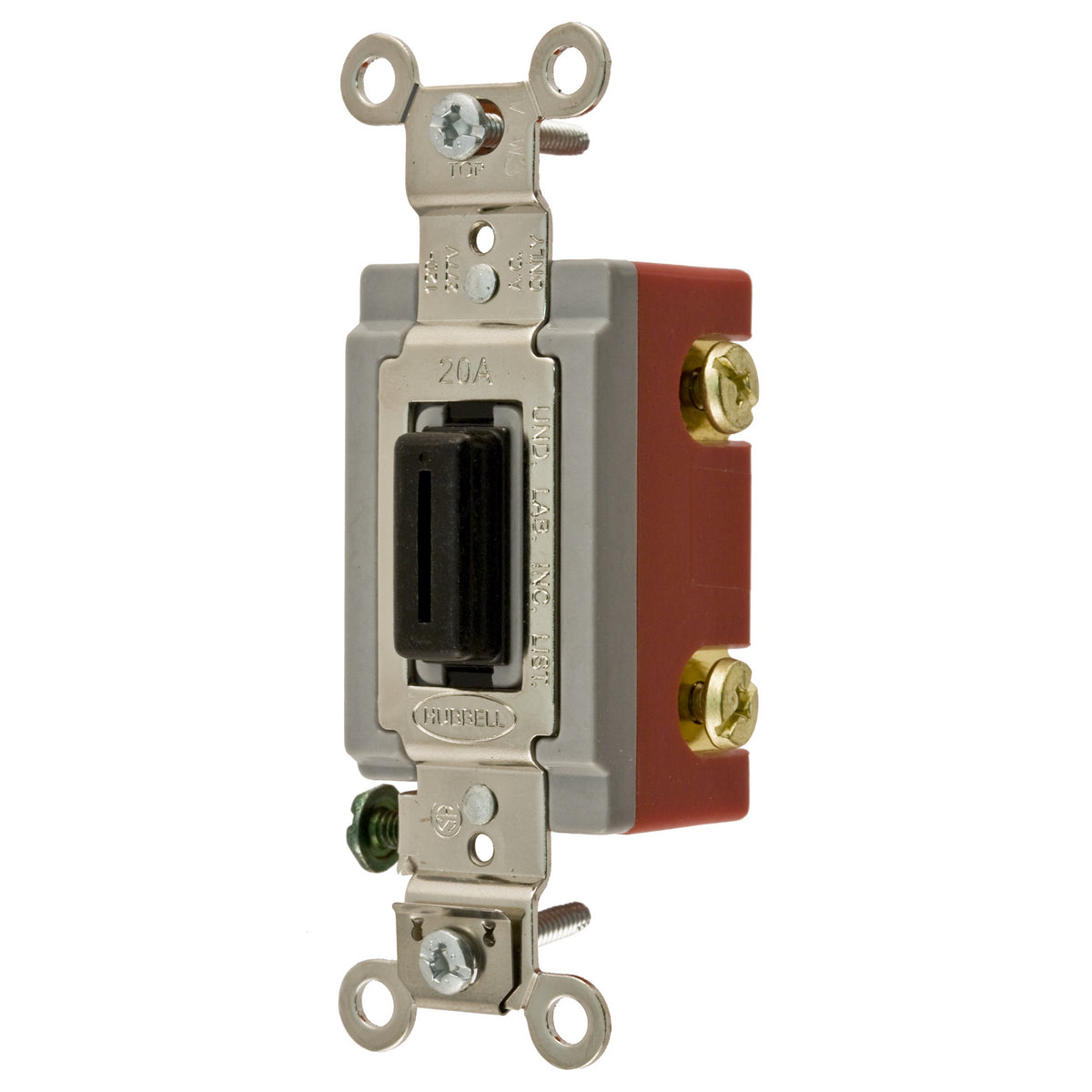

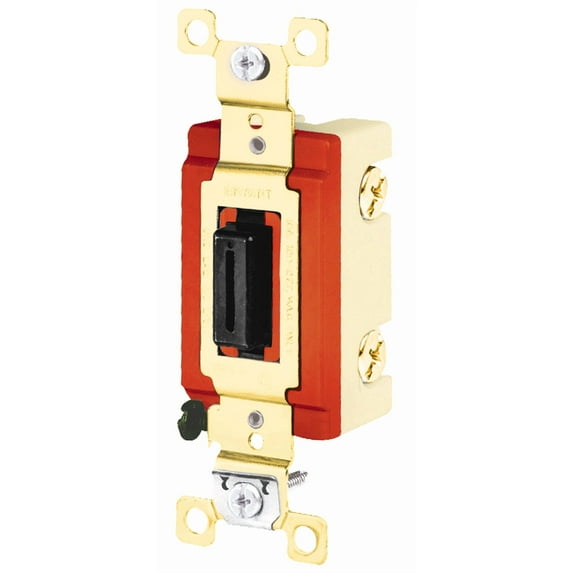

Bryant 4901L Ac Toggle Switch 20A 120/277V

Product Description

The BRYANT 4901L is an industrial-grade locking AC toggle switch. This single-pole switch is rated for 20A at 120/277V AC. It is designed for back and side wiring and features a tapered head steel lock construction for impact resistance. Ideal for commercial lighting, industrial machinery, and alarm systems.

• Tapered Head Steel Lock Construction Resists Impact
• Six Point Tumbler Cylinder Provides Superior Protection
• Barrel Locking Key for Maximum Security

Product Highlights

Industrial grade locking AC toggle switch with robust security features and durable construction.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4901L
• Country of Origin: CN

Technical Specifications

• Application: Industrial, Specification Grade
• Approval: UL, CSA, Fed Spec WS896E
• Manufacturer Name: Bryant
• Material: Thermoset (Base), Tapered Head Steel (Lock)
• Operation Type: 1-Pole
• Power Rating: 1 HP at 120 VAC, 2 HP at 240/277 VAC
• Product UPC: 781786623873
• Type: Keyed Locking
• Wiring: Back, Side
• Catalog Number: 4901L
• EU RoHS Indicator: No
• Series: Extra Heavy Duty
• Style: Single Pole
• Amperage Rating: 20 A
• Voltage Rating: 120/277 VAC
• Environmental Conditions: -40 to 75 deg C Operating Temperature
• Load: Inductive/Resistive
• Lock Type: Double Ended Key/Non-Cylindrical
• Mounting: Threaded
• Number Of Poles: 1
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 20 File No. E1464 Guide No. WMUZCSA CertifiedFederal Specification W-S-896NEMA WD1
• UNSPSC: 39122224
• Brand: BRYANT
• Current Rating: 20 A
• Features: Quiet
• Horsepower Rating: 2 hp
• Illuminated: No
• Locking Style: Fork
• Key: Key
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Pilot Light: No
• Switch Function: Maintained
• Switch Style: Locking
• Switch Type: Single Pole
• Wire Connection Type: Screw
• Terminals: Terminals
• Wiring Method: Back/Side
• Voltage: 120 VAC, 277 VAC
• Locking: Yes
• Approvals: CSA, UL
• Comments: Straight Key
