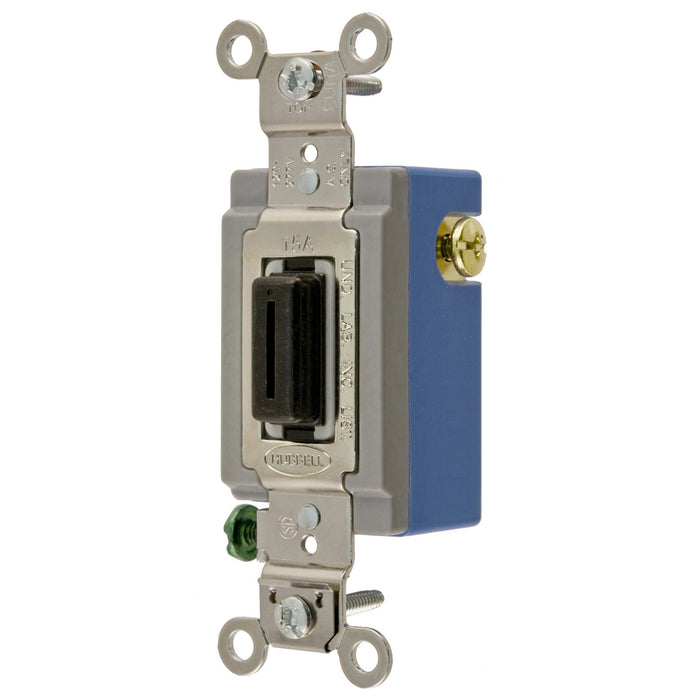

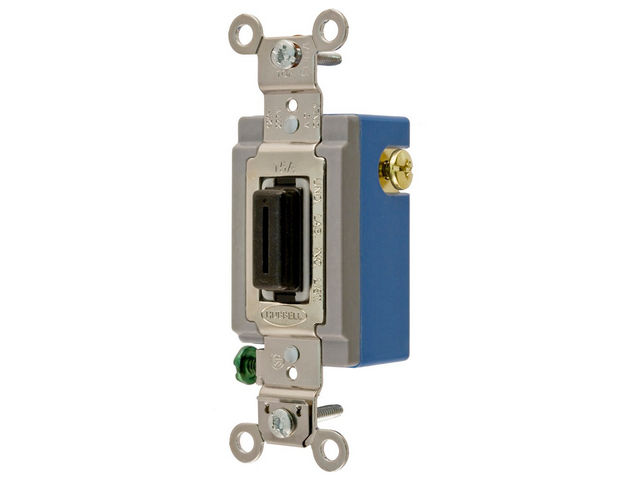

Bryant 4821L Spdt Momentary Contact Ac Switch

Product Description

The Bryant 4821L is a SPDT momentary contact AC switch. This switch is designed for industrial applications. It features back and side wiring. The Bryant 4821L is suitable for various electrical projects requiring a momentary switch function.

• Momentary single pole-double throw center off
• 15A 120/277V AC
• Back and side wired

Product Highlights

The Bryant 4821L is a reliable choice for industrial applications needing momentary switch functionality.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4821L

Technical Specifications

• Product Name: Bryant Momentary Switch 15A 120/277V SPDT Locking (4821L)
• Brand: Bryant
• SKU: 4821L
• Mfr. Part Number: 4821L
• Voltage: 120 or 277
• UPC Code: #781786657250
• Mfrcode: BRYANT
• Catalog Number: 4821L
• MFR UNSPSC: 39122211
• PRODUCT NAME: TOGGLE SWITCH
• Type: THREE POSITION TWO CIRCUIT
• ADDITIONAL INFORMATION: APPLICABLE STANDARD NEMA WD-1
• APPROVAL: UL, CSA, NOM
• Application: INDUSTRIAL
• VOLTAGE RATING: 120 TO 277 VAC
• CURRENT RATING: 15 AMPERE
• Operation Type: MOMENTARY
• Power Rating: 1/2 HP AT 120 V, 2 HP AT 240 V
• Contact Configuration: SPDT
• Handle Type: LOCK
• Wiring: BACK, SIDE
• Wall Plate Included: 0
