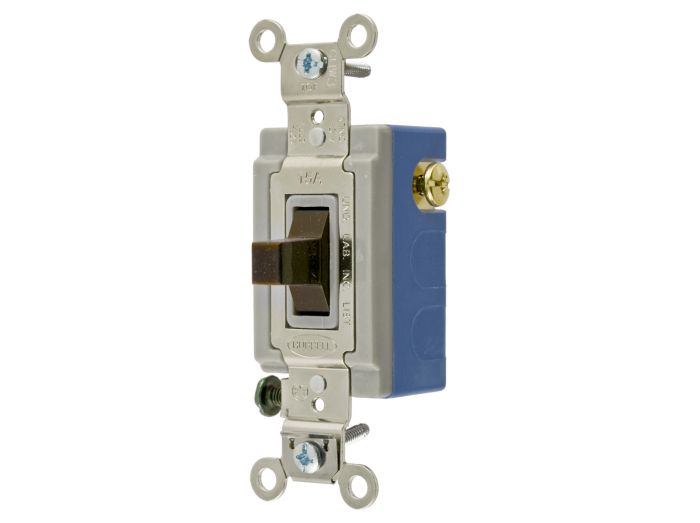

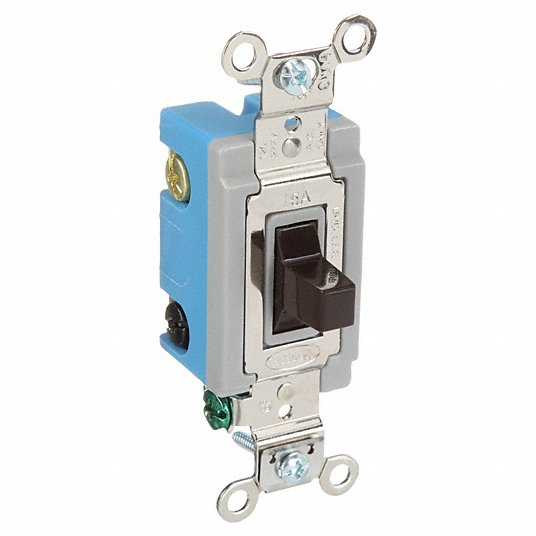

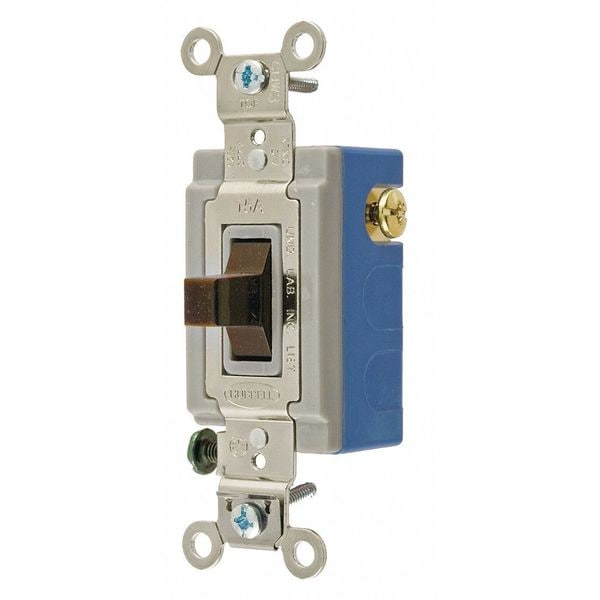

Bryant 4821 Spdt 15A Momentary Contact Ac Switch

Product Description

The Bryant 4821 Spdt 15A Momentary Contact Ac Switch is an industrial grade toggle switch. This single pole-double throw switch is rated for 15A at 120/277V AC and features back and side wiring. It provides power control for electric devices and equipment.

• Industrial grade switch
• Momentary single pole-double throw
• Quiet switch

Product Highlights

The Bryant 4821 is ideal for industrial applications requiring a durable and reliable momentary switch.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4821
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: 4821
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Industrial
• Switch Configuration: Single Pole
• Voltage: 120 VAC, 277 VAC
• Current Rating: 15 A
• Operator Color: Brown
• Illuminated: No
• Locking: No
• Approvals: CSA, UL
• Features: Quiet
• Horsepower Rating: 2 hp
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: NEMA WD-1; UL20
• Switch Function: Momentary
• Switch Style: Toggle
• Switch Type: Single Pole/Double Throw
• Voltage Rating: 120/277V AC
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
• Amps AC: 15 A
• Voltage AC: 120 to 277
• Application Environment: Industrial
• Description/Special Features: Quiet Switch
• Antimicrobial: No
• Rated HP: 1/2 to 2
• Market: Industrial
• Voltage Rating Description: 120/277 VAC
• Current / Amperage Rating: 15 A
• Amperage Rating: 15 A
• Application: Back and Side Wired
• Series: Extra Heavy Duty
