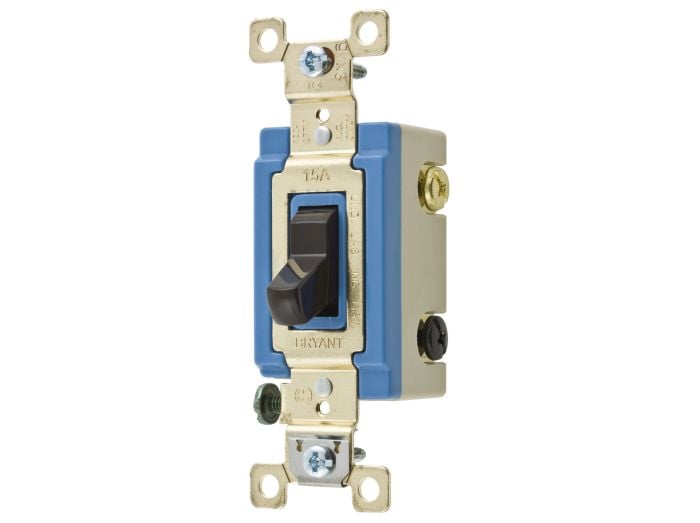

Bryant 4803 AC Toggle Switch 15A

Product Description

The BRYANT 4803 is an AC toggle switch designed for industrial and specification grade applications. This extra heavy-duty toggle switch features back and side wiring, with each clamp-type terminal accepting two wires. It is rated for 15A and 120/277 VAC, suitable for various commercial and industrial settings.

• High-Impact and Chemical Resistant Nylon Toggle
• Corrosion-Resistant Brass and Nickel-Plated Yoke
• Dual-Grounding Options, Grounding Terminal or Stainless Steel Self-Grounding Clip

Product Highlights

Durable toggle switch for industrial applications with dual grounding and chemical-resistant nylon toggle.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4803
• Country of Origin: Unknown

Technical Specifications

• Application: Industrial, Specification Grade
• Approval: UL, CSA, Fed Spec WS896E
• Color: Brown
• Manufacturer Name: Bryant
• Material: Nylon (Toggle)
• Operation Type: 3-Way
• Power Rating: 0.5 HP at 120 VAC, 2 HP at 240/277 VAC
• Product UPC: 781786623606
• Type: Toggle, Extra Heavy Duty
• Wiring: Back, Side
• Catalog Number: 4803
• Series: Extra Heavy Duty
• Style: Three Way
• Amperage Rating: 15 A
• Voltage Rating: 120/277 VAC
• Current Rating: 15A
• Voltage: 120 V
• Maximum Amperage: 15A
• Model: 4803
• MPN: 4803BLK
• Switch Configuration: 3-Way
• Switch Horsepower Rating: 1/2HP@120V, 2HP@240V, 2HP@277V
• Terminal Type(s): Back & Side Wired
• Mounting Type: Mounting Strap
• Suitable For: Interior, Wall
• Termination Type: Screw
• Installation Area: Indoor
• Recommended Environment: Indoor
• Manufacturer Part Number: 4803
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Switches
• Grade: Industrial
• Operator Color: Brown
• Illuminated: No
• Locking: No
• Approvals: CSA, UL
• Mounting Style: Screw, Wall
• Operation Method: On/Off
• Current Type: AC
• Contact Material: Nylon
• Features: Heavy Duty
