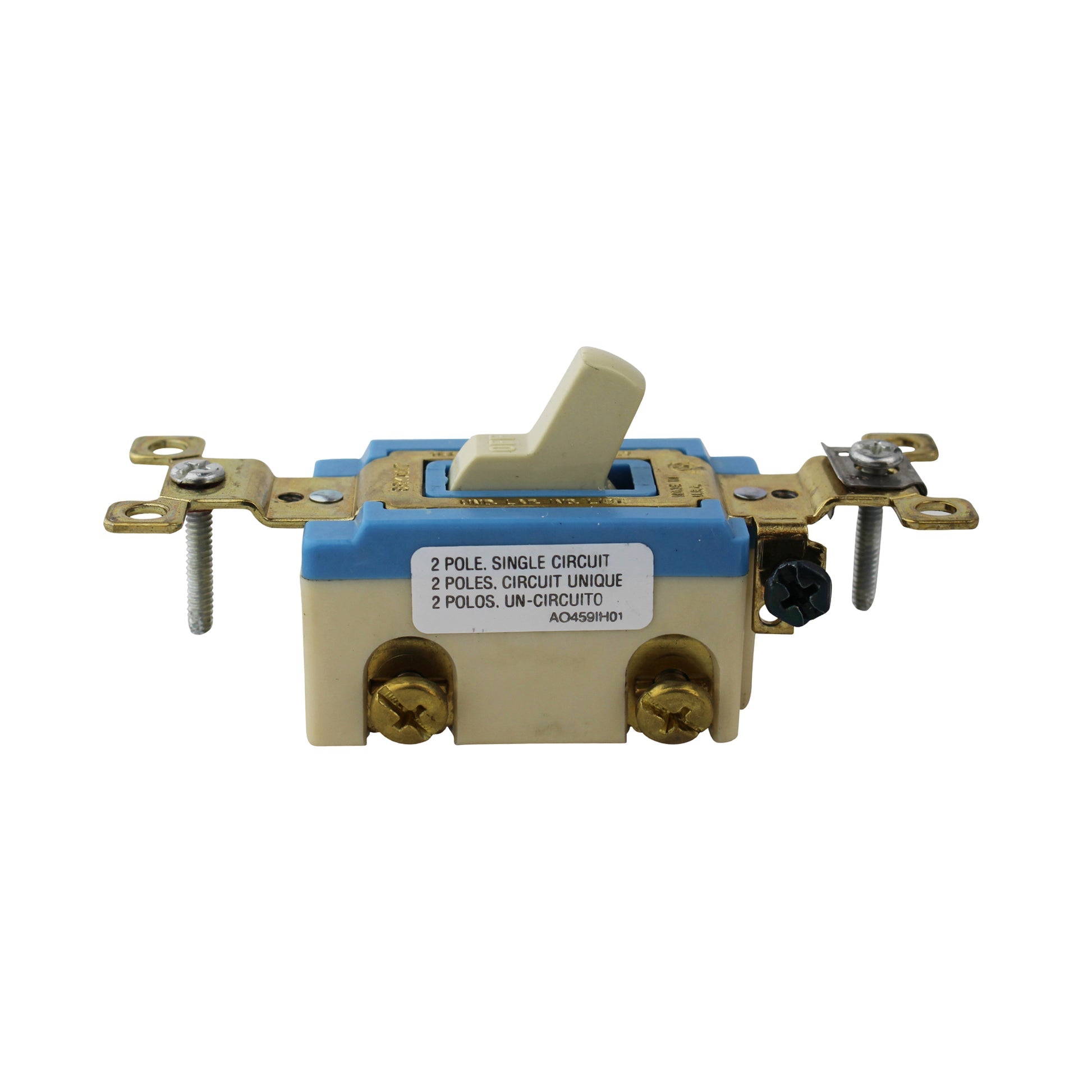

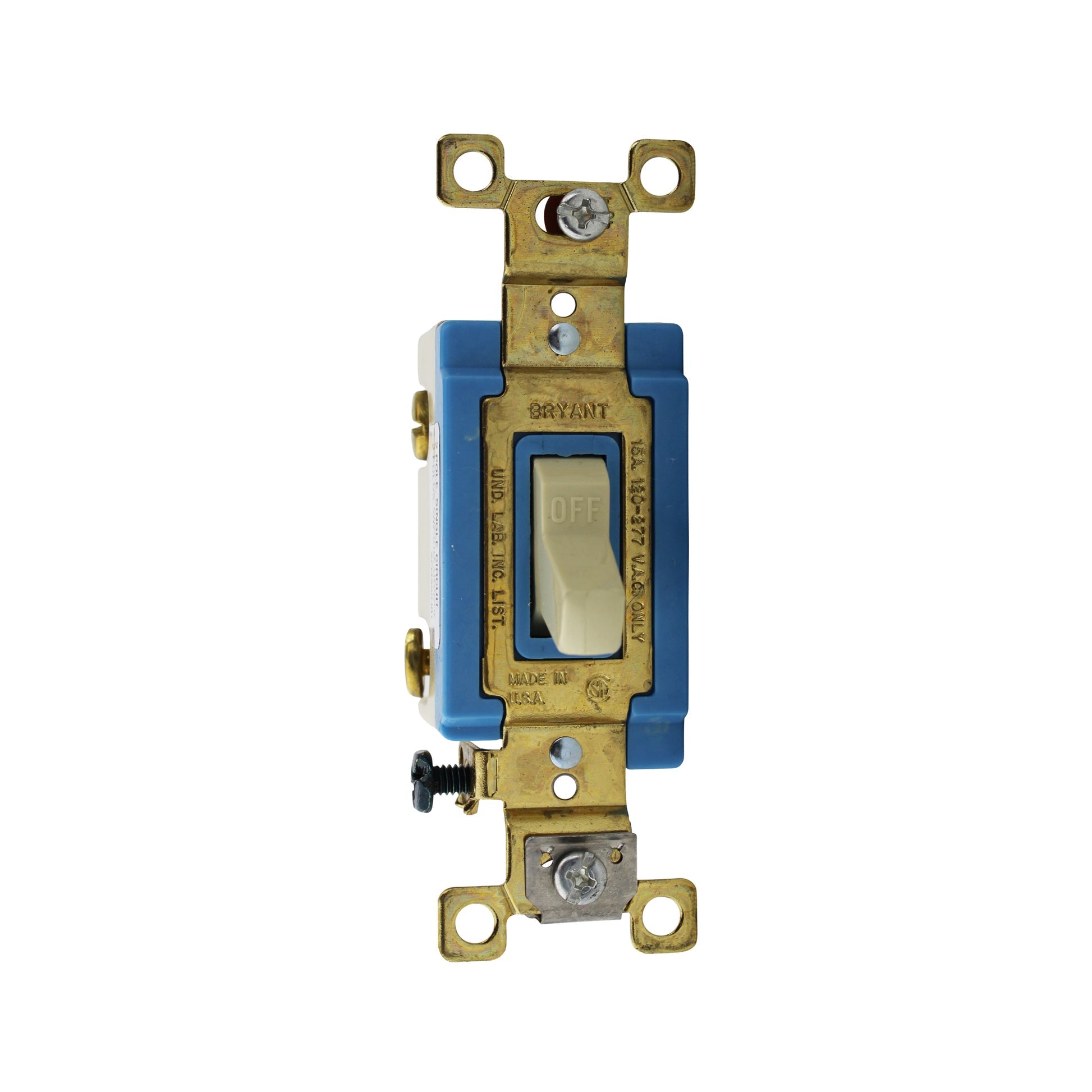

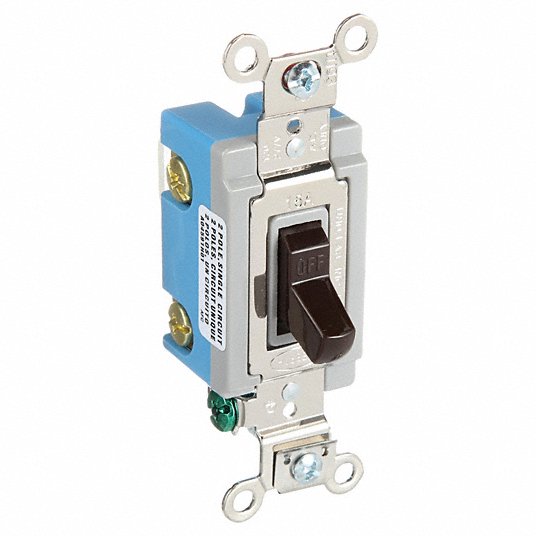

Bryant 4802 wall switch, 2-pole, locking no, toggle

Product Description

The BRYANT 4802 is a 2-pole locking toggle wall switch. This toggle wall switch controls circuits by manually flipping the lever between on and off positions. It provides power control for electrical devices and equipment such as ceiling fans, lights, outlets and appliances.

• Double Pole
• Maintained switch function
• 15 A current rating

Product Highlights

The BRYANT 4802 toggle switch is ideal for controlling power to lights and appliances. It features a maintained switch function and is UL/CSA certified.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4802
• Country of Origin: China

Technical Specifications

• Manufacturer: Bryant
• Manufacturer #: 4802
• Catalog Number: 4802
• Series: Extra Heavy Duty
• Style: Double Pole
• Type: Toggle
• UPC: 781786623552
• Amperage Rating: 15 A
• Voltage Rating: 120/277 VAC
• Model: 4802-I
• Brand: BRYANT
• Current Rating: 15 A
• Features: Quiet Switch
• Horsepower Rating: 2 hp
• Illuminated: No
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Resistance Properties: Chemical Resistant; Corrosion Resistant; Impact Resistant
• Standards: UL/CSA
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: Double Pole
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121507
• MPN: 4802-BLK
• Amperage: 15A
