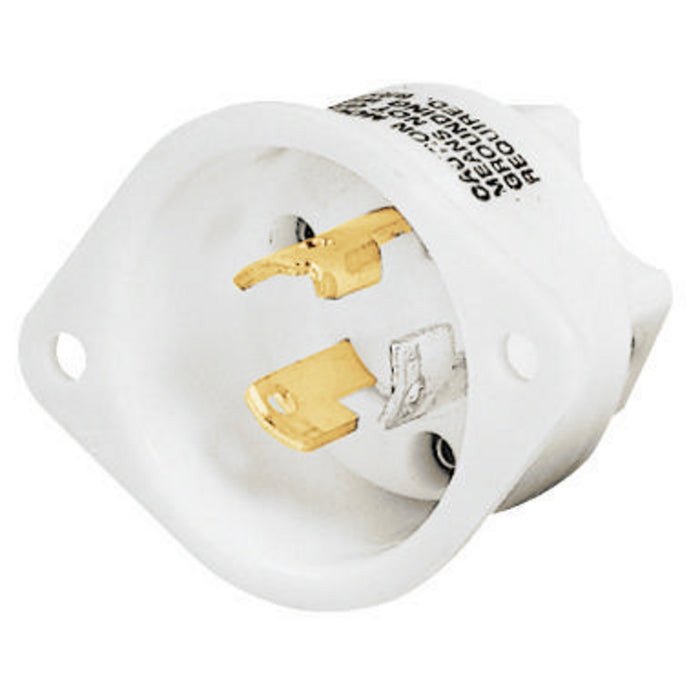

Bryant 4786MB Flanged Inlet 15A 277V L7-15P

Product Description

The BRYANT 4786MB is an industrial flanged inlet designed for heavy-duty applications. Rated at 15A and 277V AC, this 2-pole, 3-wire grounding inlet features screw terminals for connectivity. It is suitable for indoor dry environments when protected. The product is a standard-sized equipment base.

• Rated for 15A and 277V AC
• Features screw terminals for secure connectivity
• Designed for extra heavy-duty industrial applications

Product Highlights

Industrial flanged inlet with 15A 277V AC rating, screw terminals, and heavy-duty construction.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4786MB

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 4786MB
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Insulation: Insulated Body
• Item Type: 15A Flanged Inlet
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Equipment Base
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact
• Type: Flanged Inlet
• UPC: 781786405301
• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Dielectric Strength: Withstands 3000V Minimum in
• Voltage Rating: 277 VAC
• Voltage Rating Description: 277V AC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG
• Nema Rating: L7-15P
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• SKU: 4786MB
• Voltage: 277
• UPC Code: #781786405301
• Ground: Grounding
• NEMA: L7-15P
• Rating - Amps: 15A
• Rating - Volts: 277V
• Number of Poles: 2P
• Number of Wires: 3
• Mfr. Part Number: 4786MB
• Category: Plug/Receptacle
• MPN: 4786MB
