Bryant 4750DR Duplex Receptacle 15A 277V AC L7-15R

Product Description

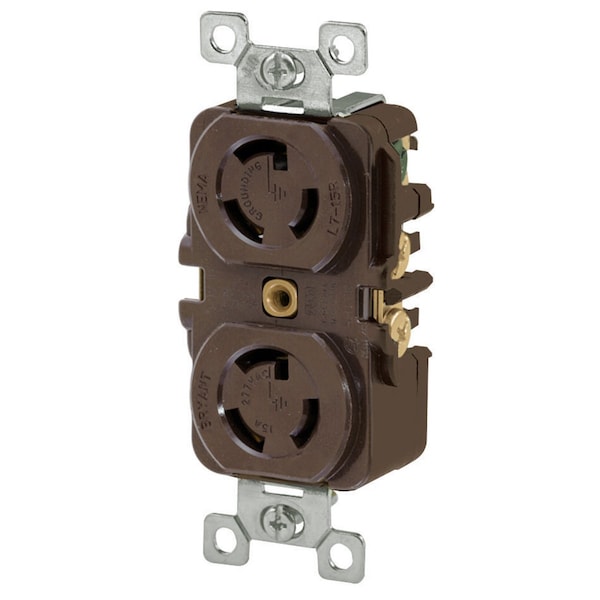

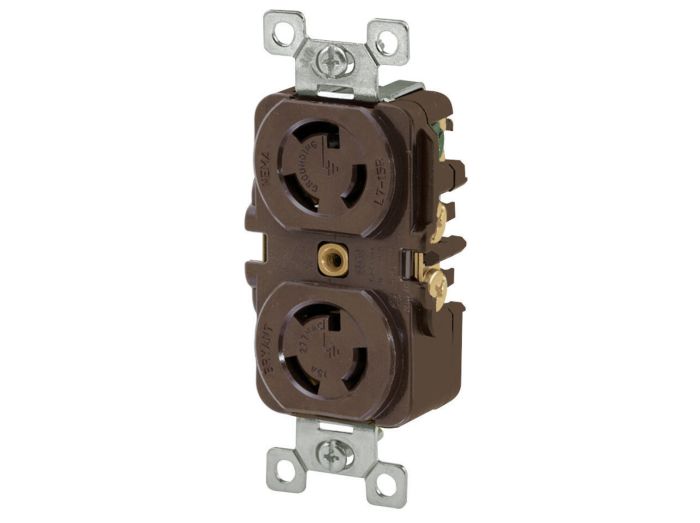

The BRYANT 4750DR is an industrial duplex receptacle, designed for heavy-duty applications. Rated at 15A and 277V AC, this 2-pole, 3-wire grounding receptacle features a L7-15R NEMA configuration and screw terminals. Ideal for industrial settings, it ensures a secure and reliable connection.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• Single point break-off tabs

Product Highlights

Industrial grade duplex receptacle with reinforced construction and reliable screw terminal connections.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4750DR
• Country of Origin: Puerto Rico

Technical Specifications

• Catalog Number: 4750DR
• Application: Extra Heavy Duty Industrial Specification Grade
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: 15A Duplex Receptacle
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Style: Duplex Receptacle
• Type: Receptacle
• UPC: 781786002128
• Amperage Rating: 15 A
• Connectivity: Terminal Screws
• Current Amperage Description: 15 Amp
• Current Rating: 15 A
• Phase: Single Phase
• Voltage Rating: 277 VAC
• Voltage Rating Description: 277V AC
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #8 AWG
• Nema Rating: L7-15R
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 4750DR
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Plugs & Receptacles
• Voltage: 277 VAC
• Body Type: Straight
• Connection Type: Duplex Receptacle
• NEMA Configuration: L7-15R
• Watertight: No
• Isolated Ground: No
• Color: Brown
• Approvals: CSA, UL
• NEMA Receptacle Configuration: L7-15R
• Wire Connection Type: Screw Terminals
• Grounding: Grounded
• Housing Color: Brown
• Cover Type: No Cover
• Standards: CSA C22.2 No.42, Fed. Spec. W-C-596, UL 498
• Flange Type: Non-Flanged
• Mount Type: Screw Mounting
