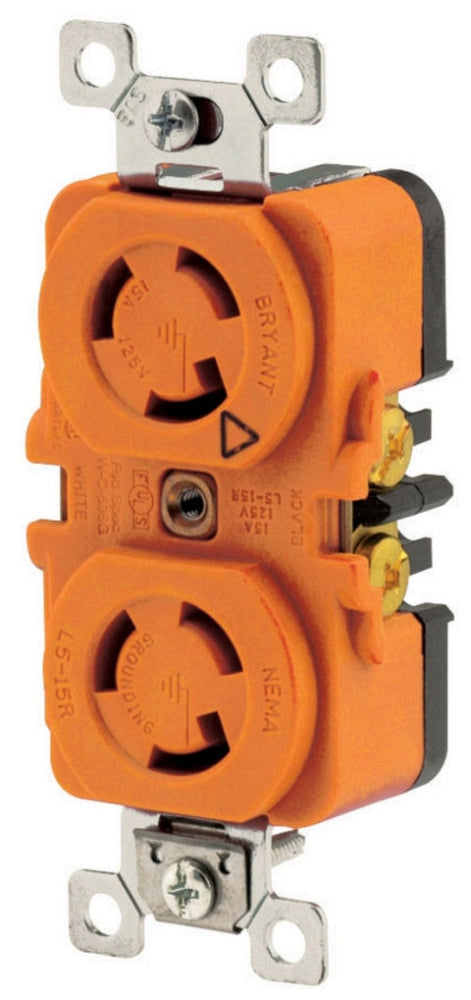

Bryant 4700DRIG Locking Device Receptacle 15A 125V L5-15R

Product Description

Bryant 4700DRIG is a locking device receptacle designed for reliable power connections. This receptacle offers a 15 amp, 125 volt rating and features isolated grounding. It is suitable for use in various wiring scenarios, ensuring safety and efficiency in electrical installations.

• Combination back and side wiring terminals accept 14 to 8 AWG solid or stranded conductors.
• Heavy duty nickel plated mounting straps resist corrosion.
• NEMA rating and configuration are molded into the face for easy identification.

Product Highlights

This receptacle is ideal for both residential and commercial applications where secure power connections are required.

Product Information

Standard Information

• Manufacturer: Bryant
• UPC: 781786002067

Technical Specifications

• Approval: UL 94/498, CSA C22.2, CE
• Color: Orange
• Configuration: L5-15R
• Ground Type: Isolated Grounding
• Material: Reinforced Thermoplastic Polyester (Base), Nylon (Face)
• Number of Poles: 2
• Number of Wires: 3
• Mounting: Screw
• Wiring: Back, Side
