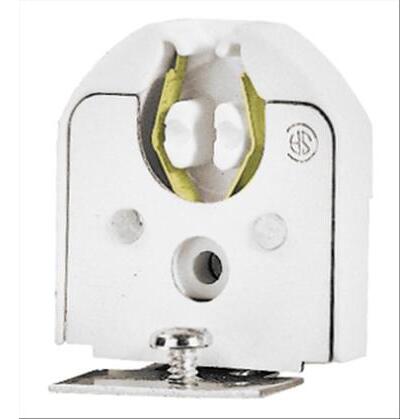

Bryant 4304W Lamp Holder, Fluorescent, Medium Bi-Pin Base

Product Description

The BRYANT 4304W is a fluorescent lamp holder with a medium bi-pin base. Designed for standard linear fluorescent lamps, it features a pedestal, low-profile construction style. The lamp holder includes a bracket with screw for mounting and quickwire terminals. It supports a maximum of 660W and 600V.

• Medium Bi-Pin Base
• Pedestal, Low Profile Construction
• Bracket with Screw Mounting

Product Highlights

The BRYANT 4304W lamp holder is ideal for fluorescent lighting applications.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 4304W
• Country of Origin: China

Technical Specifications

• Type: Standard Linear Fluorescent
• Base Type: Medium Bi-Pin
• Max Watts: 660W
• Voltage: 600V
• Construction Style: Pedestal, Low Profile
• Mounting: Bracket with Screw
• Terminals: Quickwire
• Major Group: Sockets
• Category: Socket / Lamp Holder
• Brand: Bryant
• Model: T8-T12
• Country of Origin: China
• Amperage Rating: 1.1
• Application: Bi-Pin T8 and T12
• Base: Tapped Bracket- Low Profile
• Connection: Screw Terminals
• Frequency_Rating: 60
• Lamp_Size: Bi-Pin T8 and T12
• Material: Composite
• Special Features: Tapped bracket
• Standard: UL498
• Sub_Brand: Bryant
• Voltage Rating: 600
