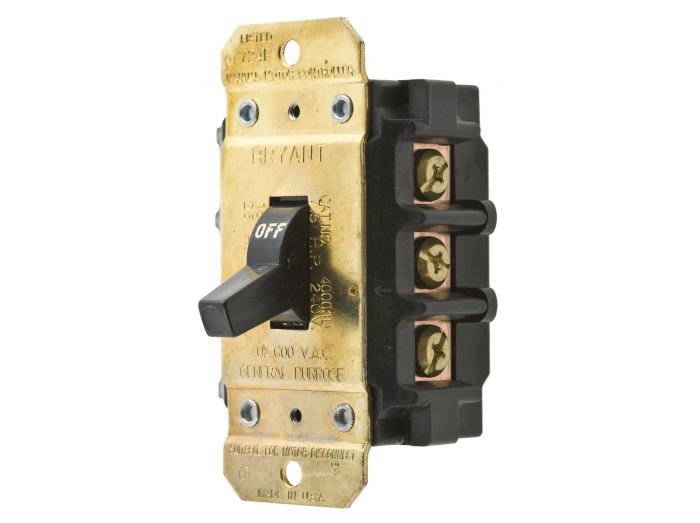

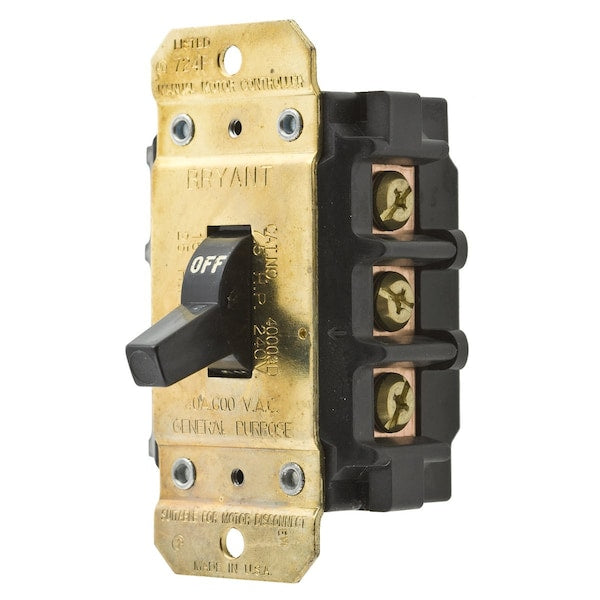

Bryant 40003D Motor Disconnect Switch 40A 600V AC

Product Description

The BRYANT 40003D is an industrial grade toggle switch designed for motor disconnect applications. This three-pole switch is rated for 40A and 600V AC, suitable for side wiring. It is ideal for industrial settings requiring robust and reliable motor control and disconnect functionality.

• Industrial Grade Toggle Switch
• Motor Disconnect Functionality
• Side Wired Only

Product Highlights

The BRYANT 40003D is a robust motor disconnect switch for industrial applications, featuring a three-pole configuration and side wiring.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 40003D
• Country of Origin: Puerto Rico

Technical Specifications

• Catalog Number: 40003D
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Open Switch
• Load Capacity: Inductive
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Operating Cycles: 10,000 Cycles Minimum
• Operating Temperature: Minimum Continuous -40 Deg C without Impact
• Series: Standard Toggle
• Style: Motor Controller/Disconnect
• Type: Side Wire
• UPC: 781786631656
• Amperage Rating: 40 A
• Connectivity: Pressure Terminal Screws
• Current Rating: 40 A
• Phase: Three Phase
• Voltage Rating: 600V AC
• Number Of Poles: 3 Pole
• Standards - RoHS Compliance Status: CM
• Manufacturer Part Number: 40003D
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Manual Motor Controllers
• Approvals: CSA, UL
• Comments: Standard Toggle, Side Wired
