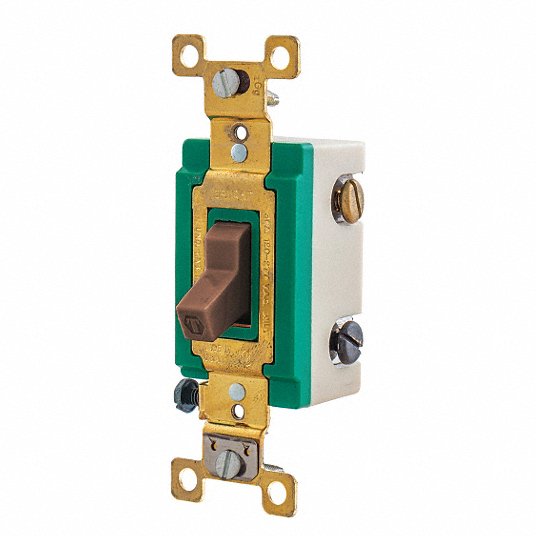

Bryant 3003BRN Toggle Switches, General Purpose AC, Three Way, 30A 120/277V AC

Product Description

The BRYANT 3003BRN is an extra heavy-duty industrial-grade toggle switch for general-purpose AC use. This three-way switch is rated for 30A at 120/277V AC and features back and side wiring. It provides power control for electric devices and equipment such as ceiling fans, lights, outlets, and appliances.

• Extra Heavy Duty Industrial Grade
• General Purpose AC
• Back and Side Wired

Product Highlights

This BRYANT toggle switch is ideal for controlling circuits in demanding industrial environments. It is UL/CSA/NOM certified.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 3003BRN
• Country of Origin: China

Technical Specifications

• Application: Back and Side Wired
• Catalog Number: 3003BRN
• Series: Extra Heavy Duty
• Style: Three Way
• Type: Toggle
• UPC: 781786619289
• Amperage Rating: 30 A
• Current / Amperage Rating: 30 A
• Voltage Rating: 120/277 VAC
• Voltage Rating Description: 120/277 VAC
• Brand: BRYANT
• Manufacturer Part Number: 3003BRN
• Current Rating: 30 A
• Horsepower Rating: 2 hp
• Illuminated: No
• Mount Hole Center-to-Center Height: 2.4 in
• Nightlight: No
• Number of Switches: 1
• Overall Height: 1.7 in
• Overall Width: 1.9 in
• Pilot Light: No
• Standards: UL/CSA/NOM
• Switch Function: Maintained
• Switch Style: Toggle
• Switch Type: 3-Way
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• Amps: 30
• Toggle Color: Brown
• VAC: 120/277
• Country of Origin: China
• Category: Industrial Automation & Motion Controls
• Specific: Amps: 30
• Specific: Toggle Color: Brown
• Specific: VAC: 120/277
