Bryant 30003D Motor Starting Toggle Switch 30A 600V

Product Description

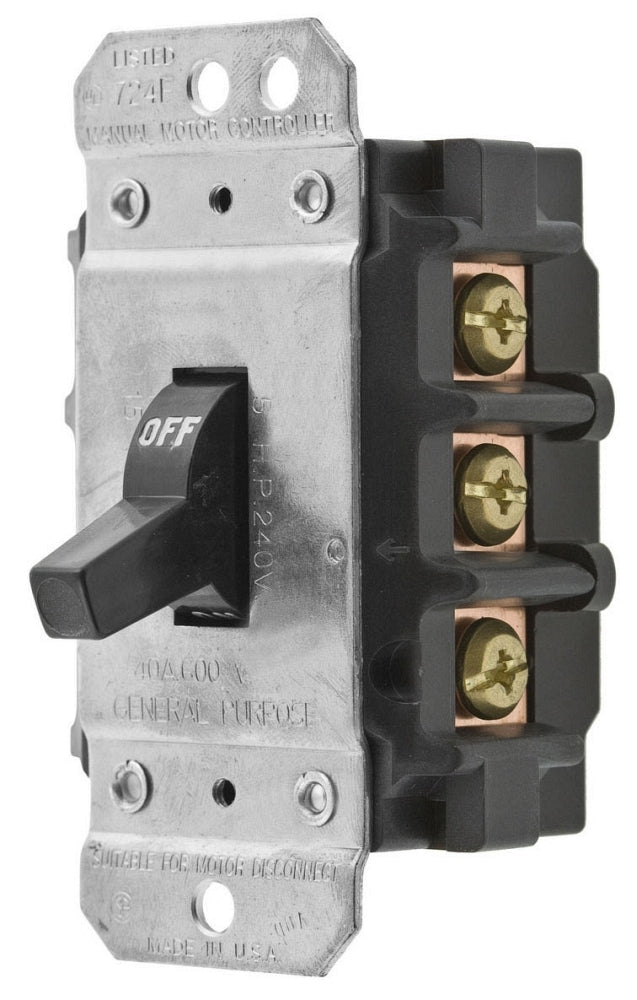

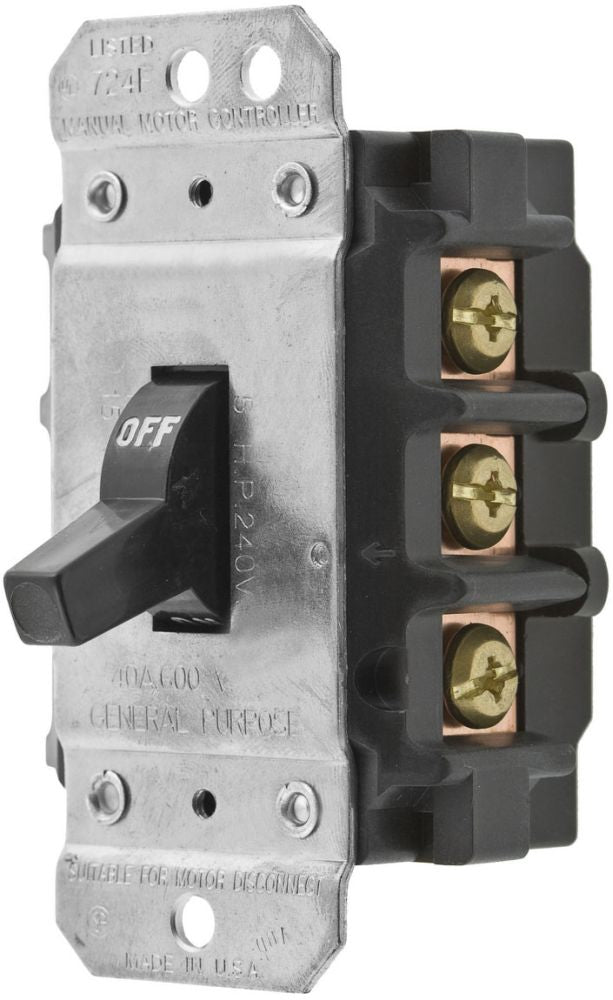

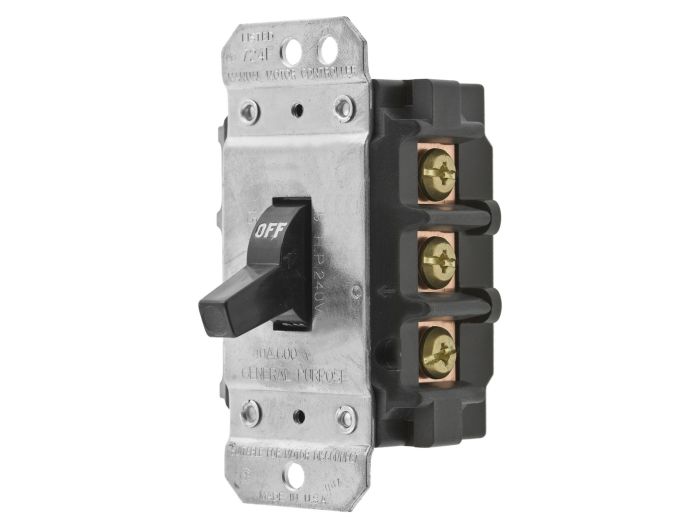

The BRYANT 30003D is a 30A 600V 3-pole manual motor starter toggle switch without overload protection and an open enclosure. This industrial grade toggle switch is designed for motor disconnect applications. It is side wired and suitable for three-phase systems.

• 3-Pole operation
• Rated for 30A and 600V AC
• Designed for motor starting applications

Product Highlights

The BRYANT 30003D is ideal for manual motor control and disconnect applications requiring a robust and reliable switch.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 30003D

Technical Specifications

• Approval: UL, CSA
• HP At 120 V: 3 HP
• HP At 240 V: 7.5 HP
• HP At 480 V: 15 HP
• HP At 600 V: 20 HP
• Manufacturer Name: Bryant
• Operation Type: 3-Pole
• Product UPC: 781786631533
• Type: 3-Phase
• Manufacturer Part Number: 30003D
• Manufacturer: Bryant Electric
• Family Series: Bryant Electric Manual Motor Controllers
• Current Rating: 30 A
• Approvals: CSA, UL
• Comments: Standard Toggle, Back and Side Wired
• Switch Type: Motor Starting
• Amps: 30A
• Voltage: 600V
• Operation: 3PST
• Enclosure: Open
• Power Phase: 3 Phase
• Features: Electronic, Manual, Open
• Model: Bryant 30003D
