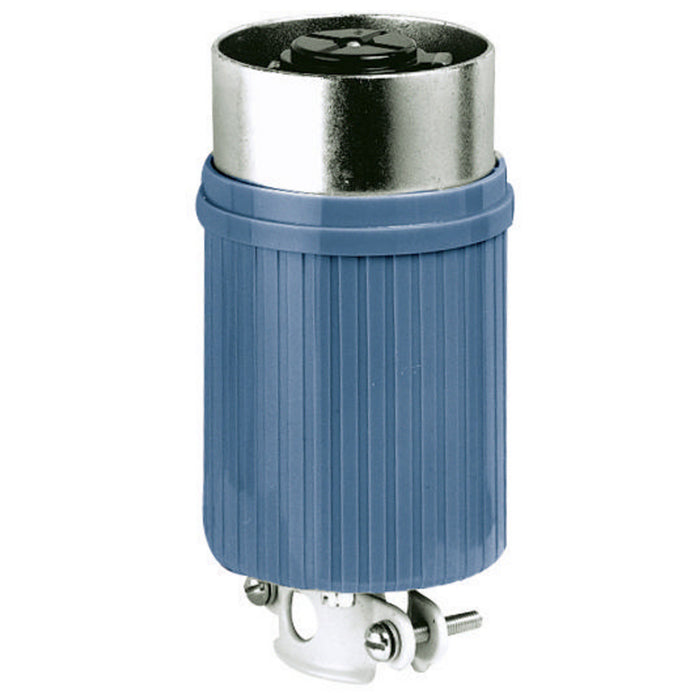

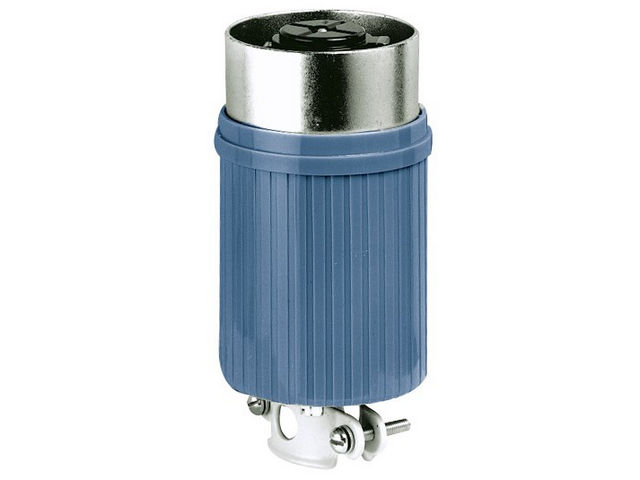

Bryant 26519 Power Interrupting Plug 60A 600V 4-Pole 5-Wire Grounding

Product Description

The BRYANT 26519 power interrupting industrial male plug operates at 60A 600V AC. This 4-pole, 5-wire grounding plug features a blue polycarbonate outer cover and adjustable cord grip. Molded-in male contacts resist damage and ensure a consistently positive connection. It is suitable for extra heavy-duty industrial applications.

• Molded-in male contacts are resistant to damage and provide a consistently positive connection
• Insulated, color coded metallic housing enhances safety and abuse resistance
• Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability

Product Highlights

The BRYANT 26519 is ideal for industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 26519

Technical Specifications

• Application: Extra Heavy Duty Industrial
• Catalog Number: 26519
• Color: Blue
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: 60A Male Plug
• Material: Composite
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Bryant
• Style: Grounding
• Type: Plugs
• UPC: 781786574199
• Amperage Rating: 60 A
• Connectivity: Screw Terminals
• Current Amperage Description: 60 Amp
• Current Rating: 60 A
• Phase: Multi Phase
• Voltage Rating: 600 VAC
• Voltage Rating Description: 600 VAC
• Number Of Poles: 4-Pole
• Number Of Wires: 5-Wire
• Wire Size: #14 AWG to #10 AWG
• Cord Type: All Listed Portables
• Brand: BRYANT
• Manufacturer Catalog Number: 26519
