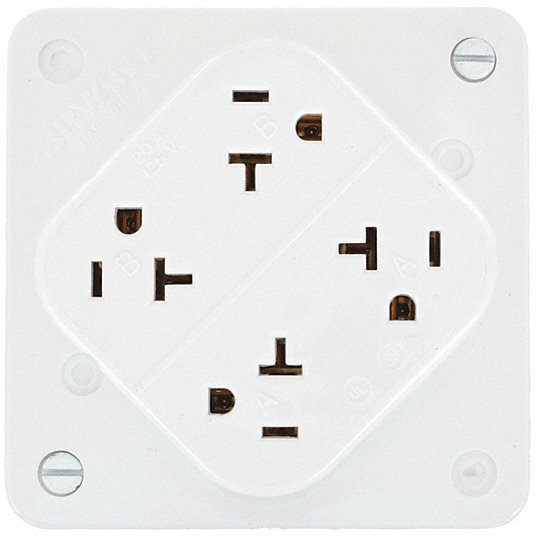

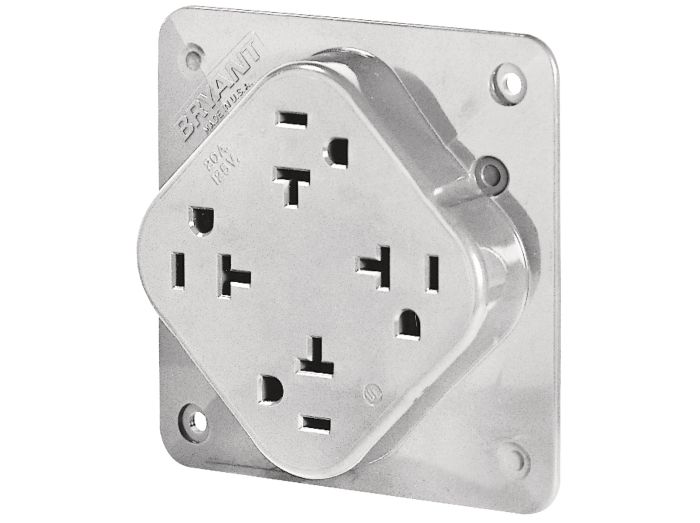

Bryant 21254W Quad-PLEX Receptacle 20A 125V 5-20R

Product Description

The BRYANT 21254W is a commercial/industrial grade Quad-PLEX receptacle. Rated for 20A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-20R NEMA rating. Designed for standard installations requiring electrical performance and durability without specialized features.

• Commercial/Industrial Grade
• 20A 125V
• 2-Pole 3-Wire Grounding

Product Highlights

This receptacle is ideal for commercial and industrial applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 21254W
• Country of Origin: USA

Technical Specifications

• Application: Commercial/Industrial
• Catalog Number: 21254W
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Item Type: Quad-Plex
• Material: Composite
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Style: Smooth Face
• Type: Four Outlet Receptacle
• UPC: 781786336599
• Amperage Rating: 20 A
• Connectivity: Terminals
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Phase: Single Phase
• Voltage Rating: 125V AC
• Voltage Rating Description: 125 V
• Wattage: 2500
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-20R
• Standards - RoHS Compliance Status: CM
• Brand: BRYANT
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover Type: No
• Cover: No
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 1 hp
• Housing Color: White
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.4 in
• Mount Hole Center-to-Center Width: 3.4 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-20R
• Number of Gangs: 1
• Number of Outlets: 2
• Overall Depth: 0.9 in
• Polarized: Yes
• Receptacle Type: Quad
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• MPN: 21254W
• Country of Origin: United States
• Rating - Amps: 20A
• Rating - Volts: 125V
• Number of Poles: 2P
• Product Series: QUADPLEX
• Family Series: Bryant Electric Plugs & Receptacles, QUADPLEX Series
• Description: Straight Blade Devices, Receptacles, Quad-PLEX, Commercial/Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White, Single Pack
• Voltage: 125 VAC
• Connection Type: Receptacle
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
