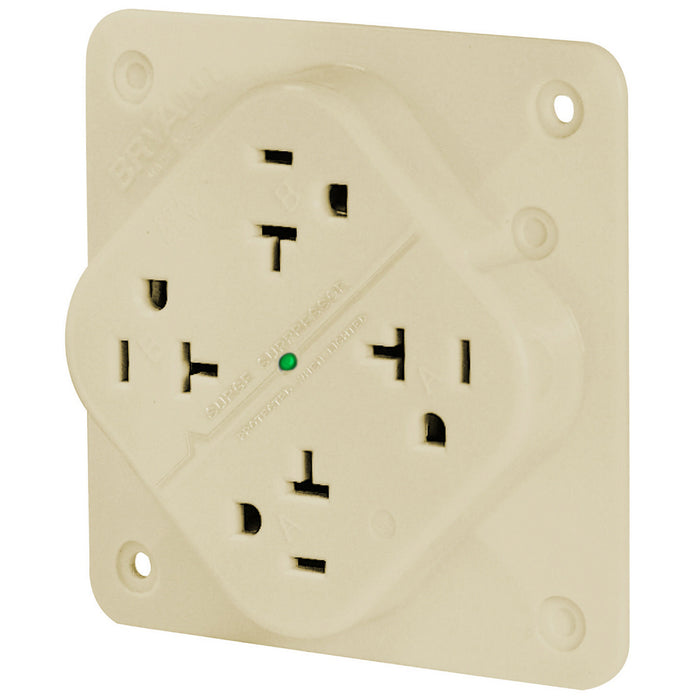

Bryant 21254SLA Quad Surge Suppression

Product Description

The Bryant 21254SLA is a quad surge suppression receptacle. This 20A, 125V quadplex receptacle features surge suppression, isolated ground, and wire leads. It is designed for commercial and industrial applications, offering reliable surge protection for sensitive electronic equipment.

• QUADPLEX Receptacle
• Surge Suppression
• Isolated Ground

Product Highlights

Quad surge suppression receptacle with isolated ground and wire leads for commercial and industrial use.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 21254SLA
• Country of Origin: Unknown

Technical Specifications

• Brand: Bryant
• MPN: 21254SLA
• Type: Electrical Plug
• Maximum Amperage: 20A
• Voltage: 125 V
• Outlet Style: Block, Quadplex
• Material Type: Nylon
• Amperage: 20A
• Device Type: 4-in-1 Receptacle
• Grade: Industrial Grade
• Ground: Grounding Screw
• Phase: 1 Phase
• Poles: 2
• Terminal Type(s): Wire Leads
• Wires: 3
• Termination Type: Pigtails
• Quantity: 1
• Product Line: QUADPLEX Series
• Application: Quad-Plex
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Indicator(s) Type: LED Visual Status Indicator
• Item Type: Surge Protection Receptacles
• Material: Composite
• Material - Mounting Hardware: Mounting Screws
• Number Of Outlets: 4
• OEM Brand Name: Hubbell Bryant
• Operating Temperature: 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
• Outlet: Straight Blade
• Response Time: 5
• Series: Commercial
• Style: Smooth Face
• Height: 0.92 in
• Length: 4.3 in
• Width: 4.3 in
• Amperage Rating: 20 A
• Connectivity: Wire Leads
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Frequency Rating: 60 Hz
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500 W
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Nema Rating: 5-20R
