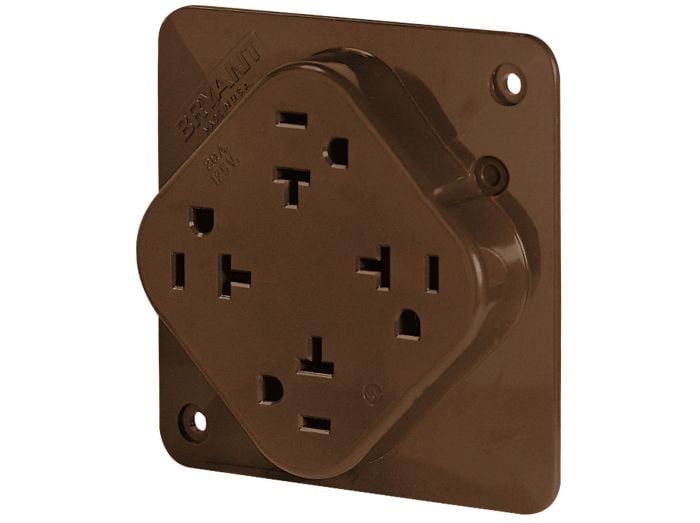

HUBBELL Bryant 21254B Quad Receptacle-Nema5-20R
HUBBELL Bryant 21254B Quad Receptacle-Nema5-20R

Bryant 21254B Quad Receptacle-Nema5-20R

HUBBELL
Brand: HUBBELL
SKU: 21254B
Availability: In Stock

Ships same day if ordered by 12 pm
$51.10
$51.10
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Bryant 21254B quad receptacle is a NEMA 5-20R rated device. This commercial/industrial grade receptacle supports 20A and 125V, and features 2-pole 3-wire grounding. Designed for standard installations where electrical performance and durability are required.

  • Commercial/Industrial Grade
  • 20A 125V
  • 2-Pole 3-Wire Grounding

Product Highlights

The Bryant 21254B quad receptacle provides basic, non-locking power connections without added protection or monitoring features.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 21254B
  • Country of Origin: USA
Technical Specifications
Catalog Number
21254B
Application
Commercial/Industrial
EU RoHS Indicator
Yes
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Item Type
Smooth Face
Material
Composite
Material - Mounting Hardware
Screw Mounting
Number Of Outlets
4
OEM Brand Name
Hubbell Bryant
Series
Commercial
Type
Four Outlet Receptacle
UPC
781786336575
Amperage Rating
20 A
Terminals
Current / Amperage Rating
Current Rating
20 A
Phase
Single Phase
Voltage Rating
125 V
Voltage Rating Description
125 V
Wattage
2500
Number Of Poles
2-Pole
Number Of Wires
3-Wire
Wire Size
#14 AWG to #12 AWG
Nema Rating
5-20R
Configuration
Number Of Outlets
Brand
BRYANT / Hubbell
AFCI
No
Connection Orientation
Straight
Contact Material
Brass
Cover Type
No
Cover
No
Face Plate Height
4.3 in
Face Plate Width
4.3 in
Flange Type
Non-Flanged
For Location
Indoor
GFCI
No
Grade
General Use
Grounding
Grounded
Horsepower Rating
1 hp
Housing Material
Composite
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
Market
Commercial; Industrial
Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.4 in
Mount Hole Center-to-Center Width
3.4 in
Mount Type
Flush
Mounting Location
Outlet Box
NEMA Receptacle Configuration
5-20R
Number of Gangs
1
Overall Depth
0.9 in
Polarized
Yes
Receptacle Type
Quad
Special Resistance
Corrosion Resistant
Standards
CSA Certified; UL Listed
Surge Protection
No
Wire Connection Type
Screw Terminals
Wiring Method
Back/Side
UNSPSC
39121406
Manufacturer
Bryant Electric
Product Series
QUADPLEX
Family Series
Bryant Electric Plugs & Receptacles, QUADPLEX Series
Description
Straight Blade Devices, Receptacles, Quad-PLEX, Commercial/Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, Single Pack
Voltage
125 VAC
Connection Type
Receptacle
NEMA Configuration
5-20R
Watertight
No
Isolated Ground
No
Illuminated
No
Approvals
CSA, UL
Manufacturer Alternate Number
21254-B
UL Rating Type
NEMA 5-20
Rated Current
20A
Power Phase
1-Phase
Number of Pins/Wires
3
Rated Voltage
125V
Grounding Style
Grounded
Flanged
No
Number Of Phases
1
Body Material
Polycarbonate
Resistance Features
Impact-Resistant
UNSPSC Code
39121406
Product Service Code
5935
