Bryant 1254W Quad-PLEX Receptacles 15A 125V 5-15R

HUBBELL
Brand: HUBBELL
SKU: 1254W
Availability: In Stock

Ships same day if ordered by 12 pm
$44.84
$44.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

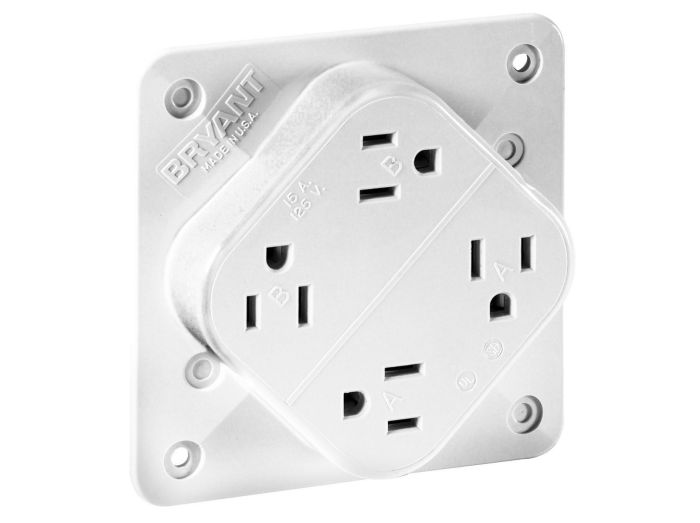

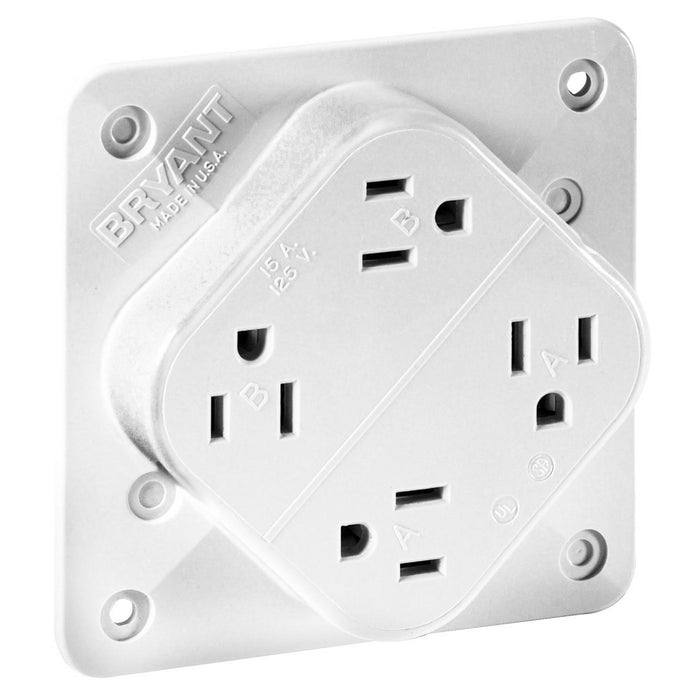

The BRYANT 1254W is a Quad-PLEX commercial/industrial grade receptacle. Rated at 15A and 125V, this 2-pole, 3-wire grounding receptacle features a 5-15R NEMA rating. Designed for standard installations where electrical performance and durability are required without specialized grounding, signaling, or surge suppression.

  • Commercial/Industrial Grade
  • 2-Pole 3-Wire Grounding
  • Corrosion Resistant

Product Highlights

The BRYANT 1254W receptacle is ideal for commercial and industrial applications requiring a durable and reliable power connection.

Product Information

Standard Information

  • Brand: BRYANT
  • Manufacturer Part Number: 1254W
  • Country of Origin: USA
Technical Specifications
Application
Commercial/Industrial
Catalog Number
1254W
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
Yes
Item Type
Smooth Face
Material
Composite
Material - Mounting Hardware
Screw Mounting
Number Of Outlets
4
OEM Brand Name
Hubbell Bryant
Series
Commercial
Type
Four Outlet Receptacle
UPC
781786336285
Amperage Rating
15 A
Connectivity
Terminals
Current Rating
15 A
Phase
Single Phase
Voltage Rating
125 V
Voltage Rating Description
125 V
Wattage
1875
Number Of Poles
2
Number Of Wires
3
Wire Size
#14 AWG to #12 AWG
Nema Rating
5-15R
Product Name
Bryant Receptacle Quadplex 15A 125V 5-15R White (1254W)
Brand
Bryant
SKU
1254W
Mfr. Part Number
1254W
Voltage
125 VAC
Housing Color
White
Product Line
QUADPLEX Series
AFCI
No
Catalog Page
310
Connection Orientation
Straight
Contact Material
Brass
Country of Origin
USA (subject to change)
Cover
No
Cover Type
No
Face Plate Height
4.3 in
Face Plate Width
4.3 in
Flange Type
Non-Flanged
For Location
Indoor
GFCI
No
Grade
General Use
Grounding
Grounded
Horsepower Rating
1/2 hp
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
IP Rating
IP20
Market
Commercial; Industrial
Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.4 in
Mount Hole Center-to-Center Width
3.4 in
Mount Type
Flush
Mounting Location
Outlet Box
NEMA Receptacle Configuration
5-15R
Number of Gangs
1
Overall Depth
0.9 in
Polarized
Yes
Receptacle Type
Quad
Special Resistance
Corrosion Resistant
Standards
CSA Certified; UL Listed
Surge Protection
No
Wire Connection Type
Screw Terminals
Wiring Method
Back/Side
UNSPSC
39121406
Number in Pack
1
Model
1254W
MPN
1254W
Manufacturer Part Number
1254W
Manufacturer
Bryant Electric
Family Series
Bryant Electric Plugs & Receptacles, QUADPLEX Series
Connection Type
Receptacle
Watertight
No
Isolated Ground
No
Illuminated
No
Approvals
CSA, UL
Net Weight
0.4 lbs
Gross Weight
0.415 lbs
