Bryant 1254I Receptacle 15 Amp 125V

Product Description

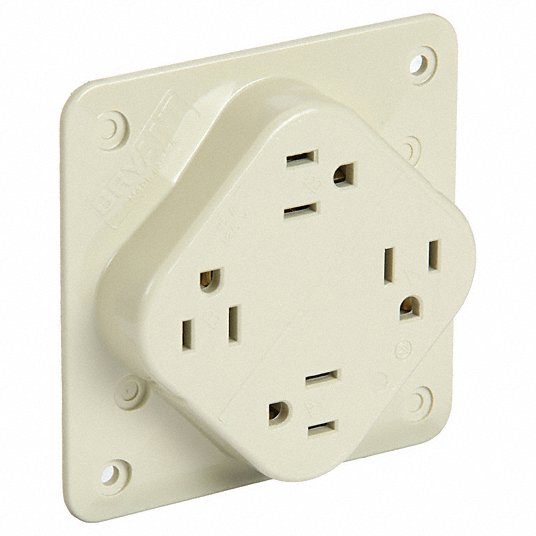

The BRYANT 1254I quadplex receptacles are suitable for retrofit, renovation, and new construction in institutional, industrial, and commercial settings. These receptacles offer convenience with four outlets in a compact design, replacing single or duplex receptacles. They reduce installation and wiring time by utilizing existing conductors.

• Accepts up to four straight or angle plugs.

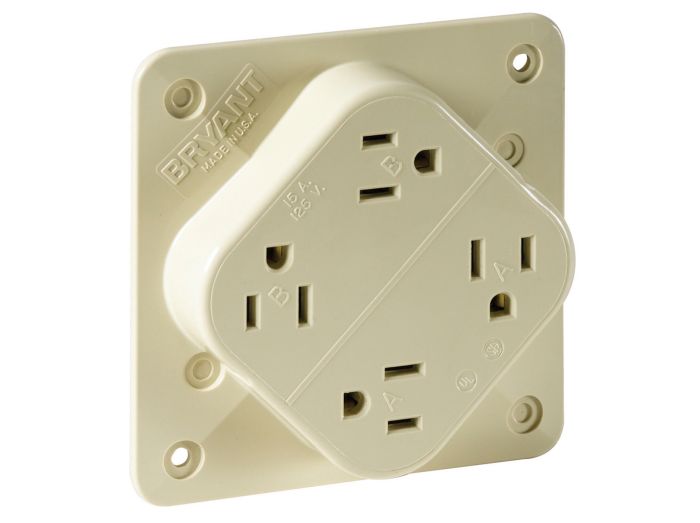

• Break-off tabs for split circuit wiring with "a" and "b" circuits molded into face for easy identification.

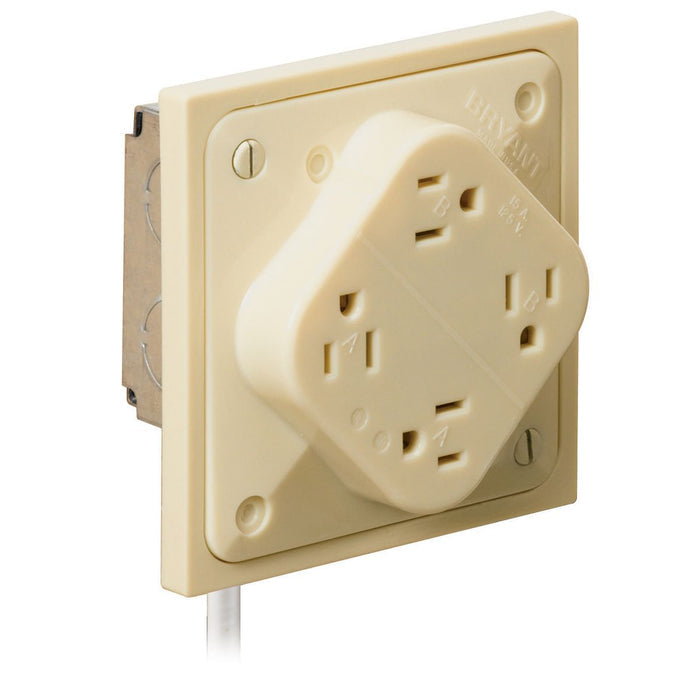

• Easily removable knockouts for mounting to octagon concrete ring or box.

Product Highlights

Bryant quadplex receptacles are constructed of high impact resistant thermoplastic and are UL listed and CSA certified.

Product Information

Standard Information

• Brand: BRYANT
• Manufacturer Part Number: 1254I
• Country of Origin: Mexico

Technical Specifications

• Brand: Bryant Electric
• Color: Ivory
• Compatible Devices: All
• Material: Steel
• Voltage: 125 Volts
• Power Plug Type: Type A - 2 pin (North American), Type B - 3 pin (North American)
• Amperage: 15 Amps
• Connector Type: Plug-In
• Total Power Outlets: 4
• Specification Met: Cul
• Application: Commercial/Industrial
• Catalog Number: 1254I
• EU RoHS Indicator: Yes
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Smooth Face
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Bryant
• Series: Commercial
• Type: Four Outlet Receptacle
• UPC: 781786336261
• Height: 0.92 in
• Length: 4.3 in
• Weight: 0.4 lb
• Width: 4.3 in
• Amperage Rating: 15 A
• Terminals: Current / Amperage Rating
• Current Rating: 15 A
• Phase: Single
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG
• Nema Rating: 5-15R
• Standards - RoHS Compliance Status: CM
• Connectivity: Terminals
• Model: 1254I
• MPN: 1254I
• AFCI: No
• Connection Orientation: Straight
• Contact Material: Brass
• Cover: No
• Cover Type: No
• Country of Origin: USA (subject to change)
• Face Plate Height: 4.3 in
• Face Plate Width: 4.3 in
• Flange Type: Non-Flanged
• For Location: Indoor
• GFCI: No
• Grade: General Use
• Grounding: Grounded
• Horsepower Rating: 1/2 hp
• Housing Color: Ivory
• Housing Material: Composite
• IP Rating: IP20
• Includes: Mounting Hardware
• Includes Mounting Hardware: Yes
• Market: Commercial; Industrial
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 14 AWG
• Mount Hole Center-to-Center Height: 3.4 in
• Mount Hole Center-to-Center Width: 3.4 in
• Mount Type: Flush
• Mounting Location: Outlet Box
• NEMA Receptacle Configuration: 5-15R
• Number of Gangs: 1
• Number of Outlets: 4
• Number of Poles: 2
• Number of Wall Plates Included: 0
• Number of Wires: 3
• Overall Depth: 0.9 in
• Polarized: Yes
• Receptacle Type: Quad
• Special Resistance: Corrosion Resistant
• Standards: CSA Certified; UL Listed
• Surge Protection: No
• Wire Connection Type: Screw Terminals
• Wiring Method: Back/Side
• UNSPSC: 39121406
• Manufacturer: Bryant Electric
• Product Series: QUADPLEX
• Family Series: Bryant Electric Plugs & Receptacles, QUADPLEX Series
• Description: Straight Blade Devices, Receptacles, Quad-PLEX, Commercial/Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Brown, Single Pack
• Connection Type: Receptacle
• NEMA Configuration: 5-15R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Manufacturer Alternate Number: 1254-I
• UL Rating Type: NEMA 5-15R
• Rated Current: 15A
• Power Phase: 1-Phase
• Number of Pins/Wires: 3
• Rated Voltage: 125V
