Brush Research Mfg. GBD80018 Flexible Cylinder Hone 180 Grit

Product Description

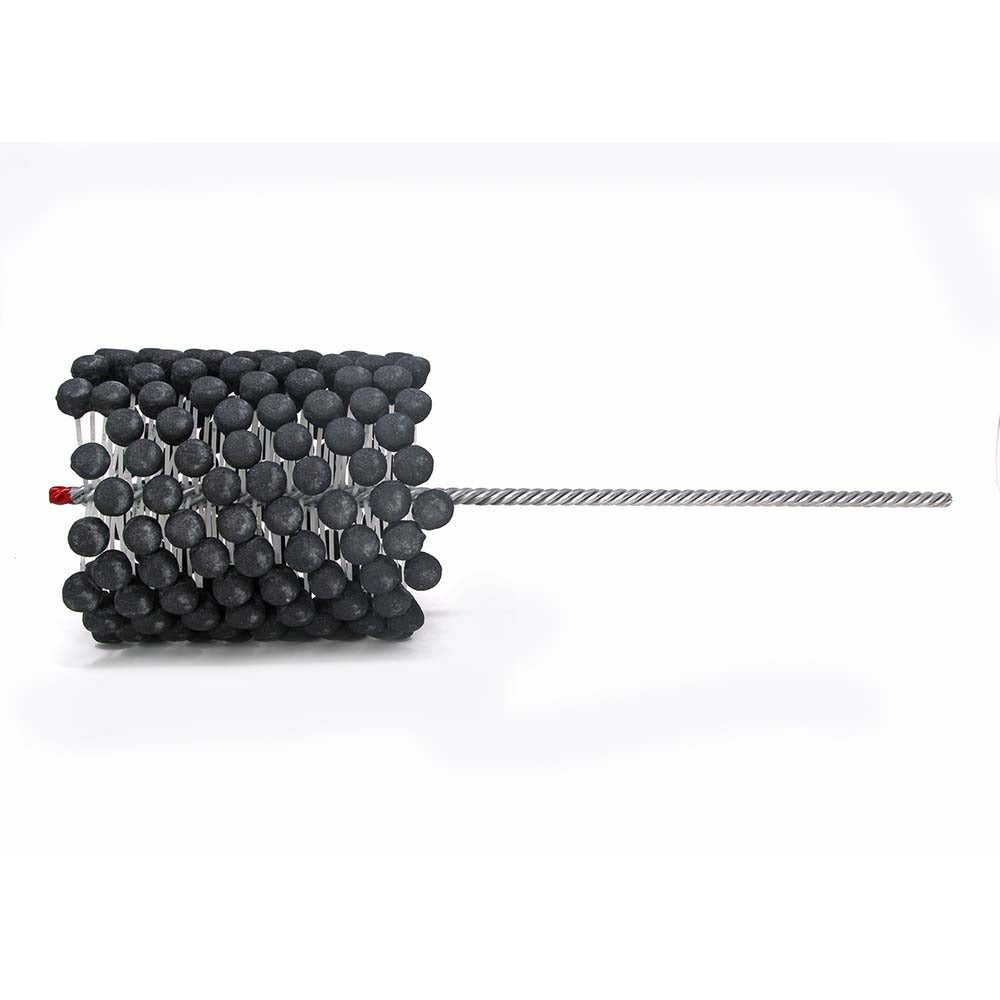

The BRUSH RESEARCH MFG. GBD80018 is a flexible cylinder hone designed for finishing, deglaz­ing, and surface conditioning of cylindrical bores. It uses silicon carbide abrasive balls at 180 grit (extra fine grade) mounted on a twisted wire stem to produce a controlled crosshatch pattern on bore walls. The hone accommodates bores up to 8 inches in diameter and has an overall length of 17.5 inches. At a maximum operating speed of 300 RPM, it is well-suited for use with a standard hand drill or drill press. The 0.42-inch shank diameter fits common chuck sizes used in machining and engine rebuilding work.

This hone is used in applications where bore surface finish is critical to proper component seating and lubrication retention. Suitable materials include mild steel, stainless steel, and cast iron, making it appropriate for engine cylinder bores, hydraulic cylinders, compressor cylinders, and similar applications. The abrasive length is 7.25 inches, allowing effective contact across a range of bore depths. Machinists, engine builders, and maintenance technicians working in automotive, industrial, and marine environments are the primary users of this tool.

Key Features

• 180 grit silicon carbide abrasive - extra fine grade for finish honing and deglazing
• Flexible ball-style design conforms to bore geometry without rigid tooling setup
• Twisted wire shank style with 0.42-inch shank diameter for standard chuck compatibility
• Maximum bore diameter of 8 inches accommodates large cylinder applications
• Rated to 300 RPM maximum for use with hand drills or drill presses
• Compatible with mild steel, stainless steel, and cast iron workpieces

Compatibility

Designed for use in cylindrical bores up to 8 inches in diameter in mild steel, stainless steel, and cast iron applications. Typical uses include engine cylinder deglazing, hydraulic cylinder reconditioning, and industrial bore finishing where an extra fine crosshatch surface finish is required.

Installation Notes

This tool is installed into a standard drill chuck using the 0.42-inch twisted wire shank. Do not exceed 300 RPM during operation. Use an appropriate honing oil or cutting fluid to reduce heat and extend abrasive life. Ensure the workpiece is securely fixtured before beginning the honing operation, and wear appropriate eye protection and gloves when handling rotating abrasive tooling.
