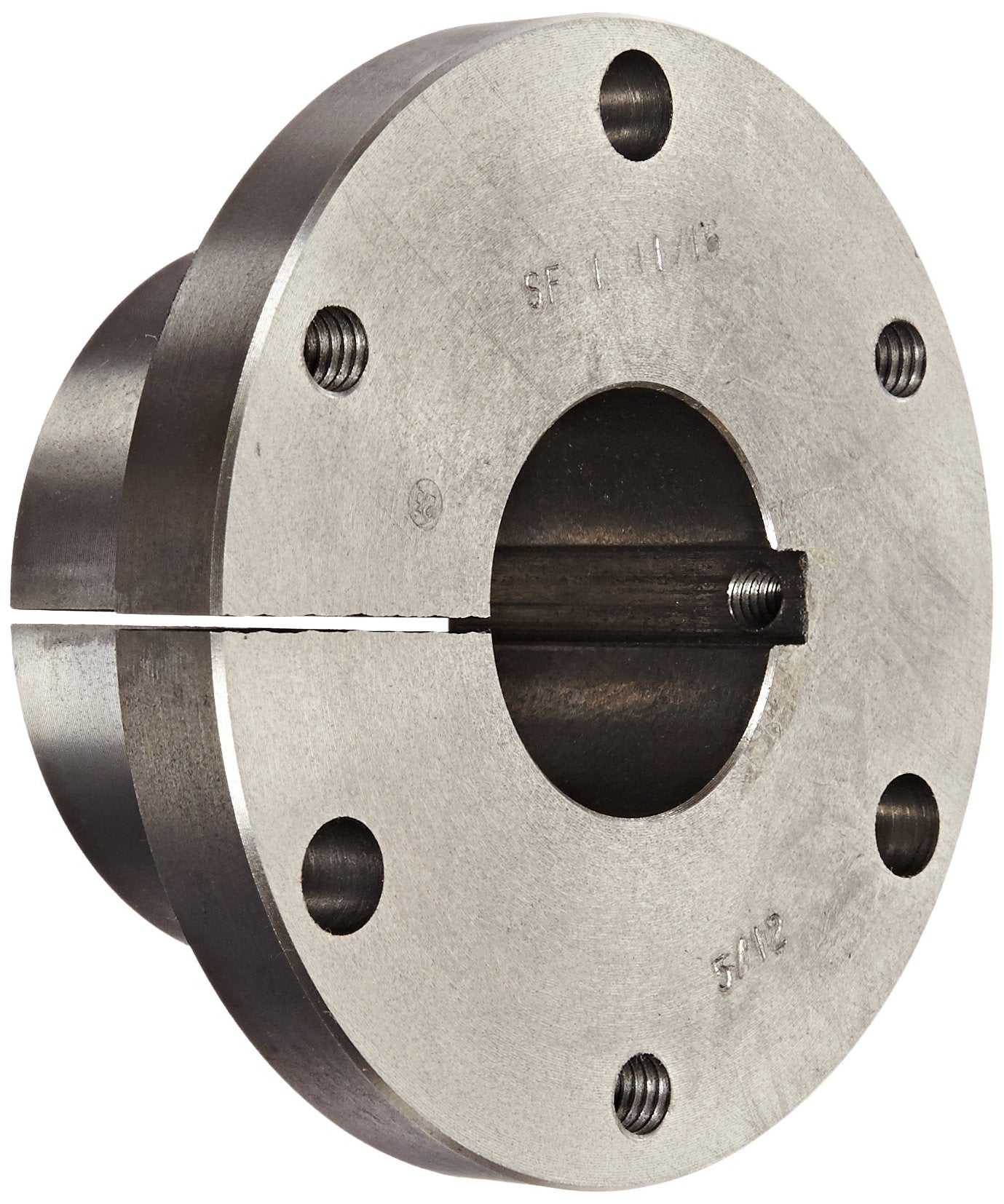

BROWNING Browning SF 1 11/16 Q-D Bushing (1-11/16 Bore, Single Split Barrel)
BROWNING Browning SF 1 11/16 Q-D Bushing (1-11/16 Bore, Single Split Barrel)

Browning SF 1 11/16 Q-D Bushing (1-11/16 Bore, Single Split Barrel)

BROWNING
Brand: BROWNING
SKU: SF 1 11/16
Availability: In Stock

Ships same day if ordered by 12 pm
$174.95
$174.95
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Browning SF 1 11/16 is a Q-D (quick disconnect) split-flange bushing with a 1-11/16 inch (1.6875 in) finished bore and a 3/8 x 3/16 inch keyway. Constructed of Gray Iron (G3004) with a single split, self-locking tapered barrel (3/4 in per ft), it provides mechanical locking for shaft-mount power transmission and allows reverse mounting for a flush face.

  • Finished 1-11/16 in bore with 3/8 x 3/16 in keyway; suitable for shaft-mounted power transmission
  • Gray Iron (G3004) single split barrel with 3/4 in per ft self-locking taper for mechanical locking
  • Conventional mounting with reverse mounting ability; includes three cap screws (3/8-16 x 2 in)

Product Highlights

QD split-flange bushing, 1.6875 in bore, 3/8 x 3/16 keyway, Gray Iron G3004, 3/4 in/ft tapered single-split barrel, reversible mounting

Product Information

Standard Information

  • Brand: BROWNING
  • Manufacturer Part Number: SF 1 11/16
  • Country of Origin: Mexico
Technical Specifications
Brand
Browning
MPN
SF 1 11/16
Manufacturer
Regal
Manufacturer Catalog Number
SF 1 11/16
Model Number
1077312
Product Type
Quick disconnect bushing (Q-D bushing)
Bushing Type
SF split flange
Material
Gray Iron (G3004)
Bore Diameter
1.6875 in (1-11/16 in)
Bore Type
Finished with keyway
Keyway Size
3/8 x 3/16 in
Barrel Length
1.4375 in
Barrel Diameter
3.1250 in
Barrel Taper
3/4 in per ft (self-locking)
Length Through Bore
1.9950 in
Flange Outside Diameter
4.6250 in
Flange Thickness
0.5625 in
Bolt Circle Diameter
3.8750 in
Number Of Bolt Holes
3
Cap Screws
3 x 3/8-16 x 2 in
Screw Thread Size
3/8-16 in
Wrench Torque / Screw Torque
30 ft-lbs
Torque Capacity
11,000 in-lb
Mounting Type
Conventional (reverse mounting possible)
Bore Range (product family)
1/2 in to 7 in
Weight
4.24 lb
UPC
662289385249
GTIN/EAN
0662289385249
CAD Drawing
https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=18533
Manufacturer Product Page
https://www.regalrexnord.com/products/mechanical-power-transmission-components/bushings/q-d-bushings/q-d-bushing-inch-bore-type-1077312
SDS
https://chemmanagement.ehs.com/9/1e274a12-2779-49b8-a16b-aa892f12e75d/ebinder
MPN/Model Cross Reference
1077312
