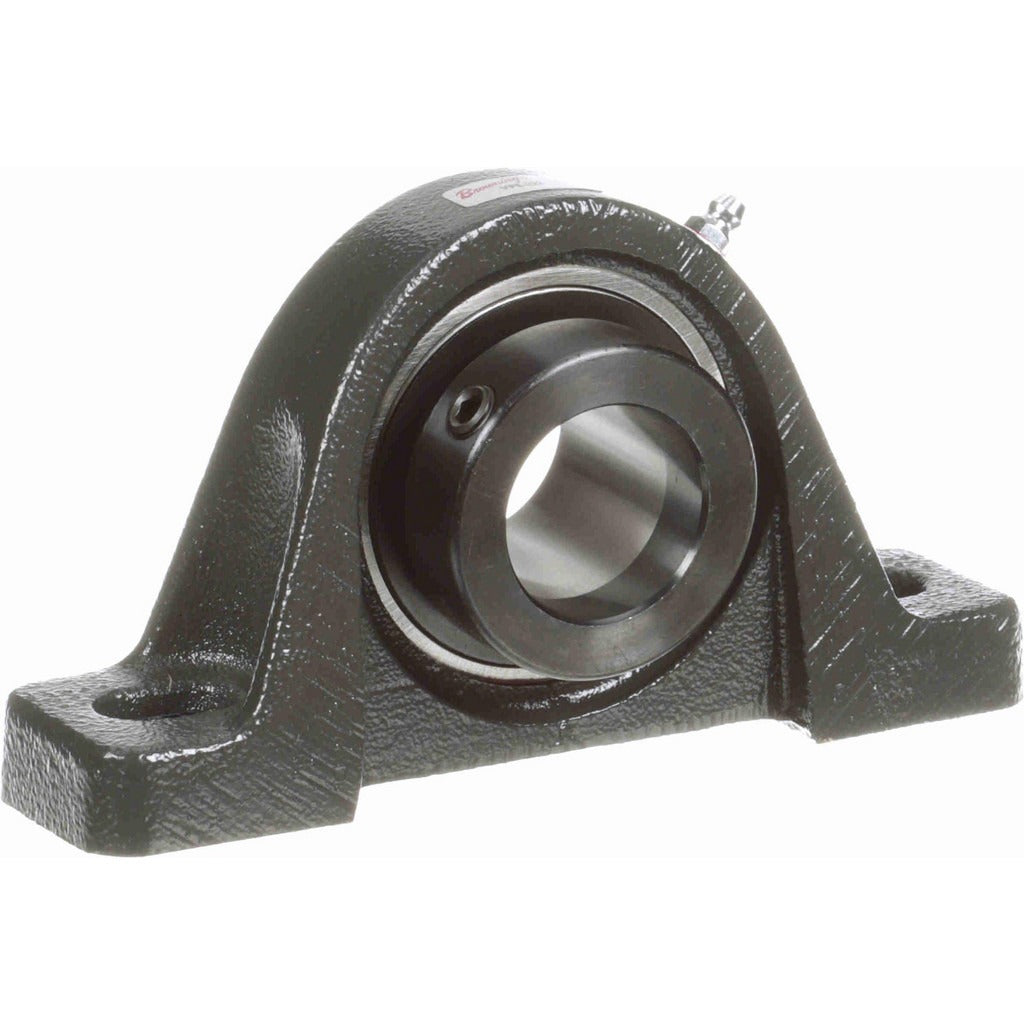

Browning 767856 Pillow Block Bearing 1-3/8 Inch Id

Product Description

The BROWNING 767856 is a two-bolt pillow block bearing in the VPE 200 Series, designed for industrial shaft support in rotating equipment applications. The bearing features a 1-3/8 inch straight bore with an eccentric lock collar, a cast iron housing, and a 52100 bearing steel insert. With a static load capacity of 3,493 pounds and a dynamic load capacity of 5,782 pounds, this unit handles moderate to heavy radial loads in standard industrial duty environments. It is rated to 4,000 RPM. Mechanical trades and millwrights install this unit during equipment assembly or bearing replacement service on conveyors, fans, pumps, and similar shaft-driven machinery.

The 767856 pillow block is suited for use in manufacturing, agricultural, and HVAC fan-drive applications where a standard two-bolt housing mount is required. The cast iron housing provides rigidity for fixed shaft positions, and the eccentric locking collar allows field adjustment and secure shaft engagement without additional locking hardware. This bearing fits horizontal shaft installations in both new equipment builds and field replacement scenarios where the VPE 200 Series form factor is specified.

Key Features

• 1-3/8 inch straight bore with eccentric lock collar for positive shaft retention
• 52100 bearing steel insert for reliable load handling and wear resistance
• Cast iron housing rated for industrial duty fixed-mount applications
• Static load capacity: 3,493 pounds; dynamic load capacity: 5,782 pounds
• Maximum operating speed of 4,000 RPM
• Two-bolt mounting pattern with 5 inches between mounting hole centers

Compatibility

Designed as an OEM-style replacement or direct application bearing in the VPE 200 Series pillow block family, fitting 1-3/8 inch diameter shafts with straight bore and two-bolt housing configurations.

Installation Notes

Installation is typically performed by a millwright or mechanical technician. Shut down and lock out all power to the driven equipment before removing or installing the bearing. Ensure the shaft is clean, free of burrs, and within tolerance before seating the bore. Torque mounting bolts evenly and verify shaft alignment before returning equipment to service.
