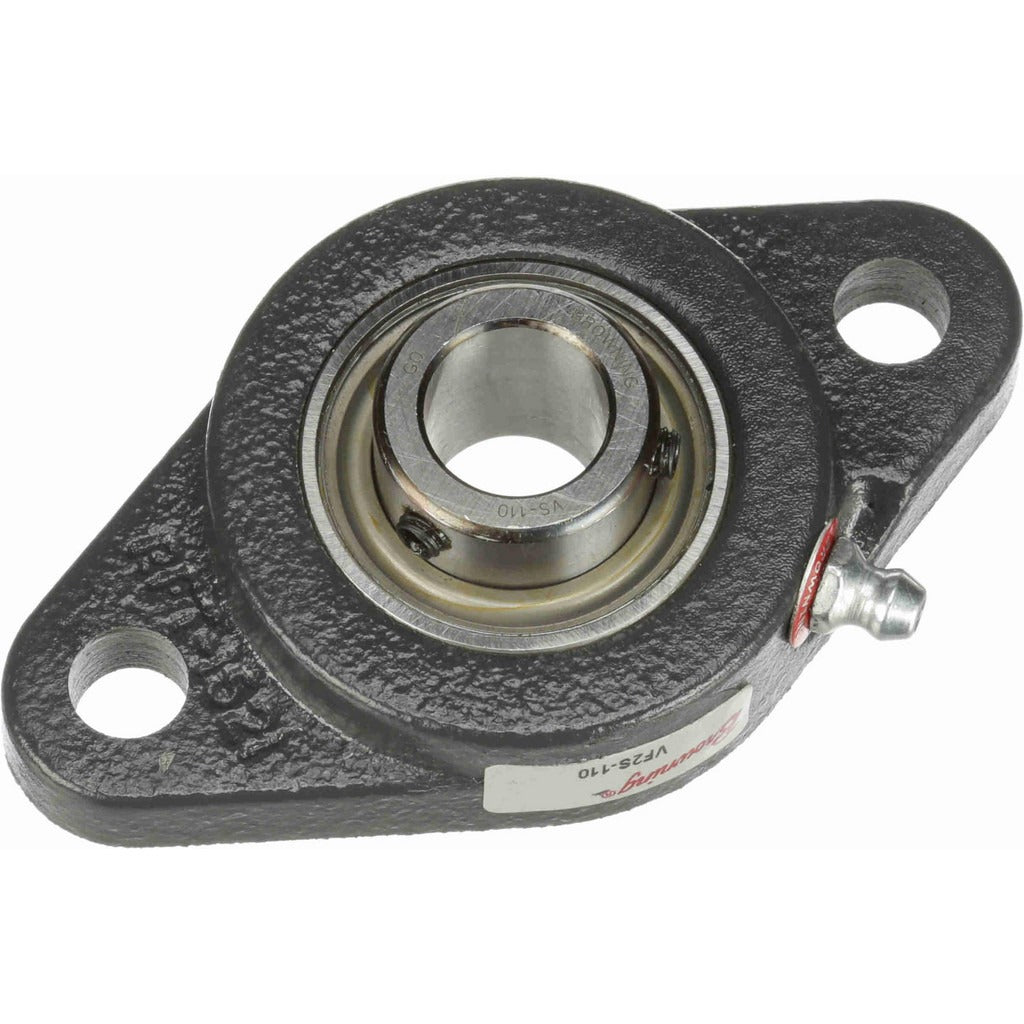

Browning 767837 2-bolt Flange Bearing 5/8 Inch Id

Product Description

The BROWNING 767837 is a 2-bolt flange bearing unit from the VF2S 100 Series, designed for light-to-medium duty shaft support applications in industrial and commercial equipment. The cast iron housing accepts a 5/8-inch shaft via a set screw lock, and the 52100 steel ball bearing insert delivers a static load capacity of 1,444 pounds and a dynamic load capacity of 2,611 pounds. With a maximum speed rating of 5,000 RPM, this unit suits a range of rotary shaft applications. Lubrication is required during installation and periodic maintenance. Mechanical contractors, millwrights, and industrial maintenance technicians are the typical installers.

This flange bearing is used in conveyor systems, fans, blowers, augers, and other rotating equipment that requires a rigid, bolted-mount bearing support. The 2-bolt mounting pattern with 3-inch center-to-center bolt hole spacing fits standard mounting plates and frames. The set screw locking mechanism secures the bearing insert directly to the shaft without additional adapters. The VF2S 100 Series is a recognized catalog family suited for general-purpose industrial shaft positioning where a compact, low-profile flange mount is required.

Key Features

• 5/8-inch bore with set screw lock for direct shaft mounting
• Cast iron housing for durability in industrial environments
• 52100 steel ball bearing insert with 1,444 lb static and 2,611 lb dynamic load capacity
• 5,000 RPM maximum speed rating
• 2-bolt mounting pattern with 3-inch bolt hole center-to-center spacing
• Requires lubrication — grease fitting servicing supported

Compatibility

Designed as an OEM-style replacement or direct-fit flange bearing for industrial rotating equipment using a 5/8-inch shaft with a 2-bolt flange mount configuration in the VF2S 100 Series.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance technician. De-energize and lock out all power to the equipment before mounting or servicing this bearing. Ensure the shaft is clean and free of burrs before inserting and tightening the set screws. Apply appropriate grease to the bearing insert at installation and follow the equipment manufacturer's recommended re-lubrication intervals.
