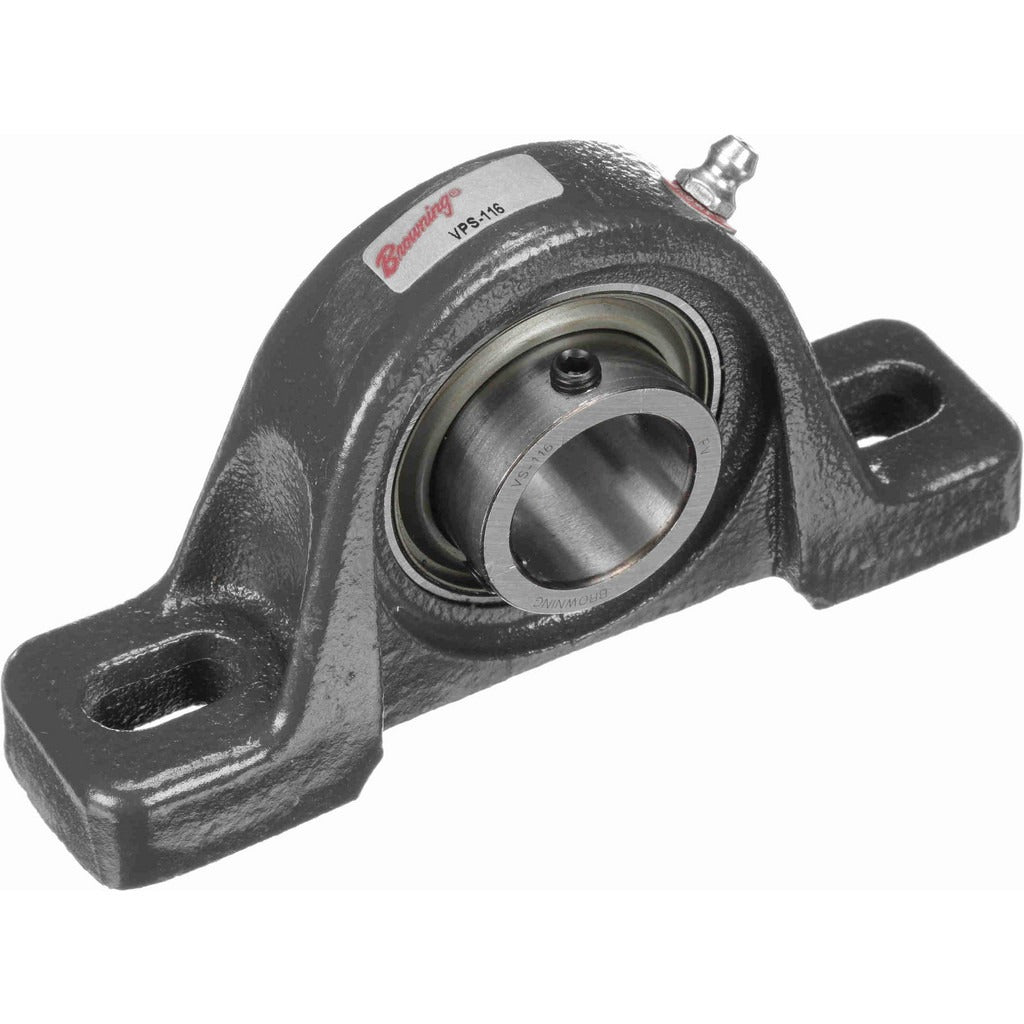

Browning 767580 Pillow Block Bearing 1 Inch Id Vps 100

Product Description

The BROWNING 767580 is a VPS 100 series pillow block bearing designed for rotating shaft applications in industrial and mechanical power transmission systems. It features a 1 inch straight bore and a cast iron housing with a ball bearing insert made from 52100 bearing steel. The bearing carries a static load capacity of 1,651 pounds and a dynamic load capacity of 2,801 pounds, making it suitable for moderate-to-heavy duty installations. A set screw lock type secures the bearing to the shaft. Installation is typically performed by millwrights, maintenance mechanics, or industrial technicians working on conveyor systems, fans, pumps, and similar rotating equipment.

This pillow block bearing is suited for use in industrial machinery, agricultural equipment, and general manufacturing environments where a two-bolt, cast iron housed bearing unit is required. The VPS 100 series is rated to a maximum of 3,500 RPM, supporting a range of drive applications. The 3-15/16 inch center-to-center bolt hole spacing and 1-7/16 inch base-to-center height accommodate standard mounting configurations on fabricated steel or machine frames.

Key Features

• 1 inch straight bore with set screw shaft lock for positive retention
• Cast iron housing provides durability in industrial environments
• 52100 bearing steel insert for reliable load handling
• Static load capacity of 1,651 pounds and dynamic load capacity of 2,801 pounds
• Rated to 3,500 RPM maximum
• Two-bolt mounting with 3-15/16 inch center-to-center spacing

Compatibility

Designed as an OEM-style replacement or direct-fit pillow block bearing for industrial shafting applications requiring a 1 inch straight bore, two-bolt cast iron housing in the VPS 100 series configuration.

Installation Notes

Installation should be performed by a qualified millwright or maintenance technician. De-energize and lock out all power sources before servicing any rotating equipment per OSHA lockout/tagout procedures. Ensure the mounting surface is flat and that bolt holes are aligned before torquing fasteners. Do not overtighten set screws without verifying the shaft diameter and hardness specifications.
