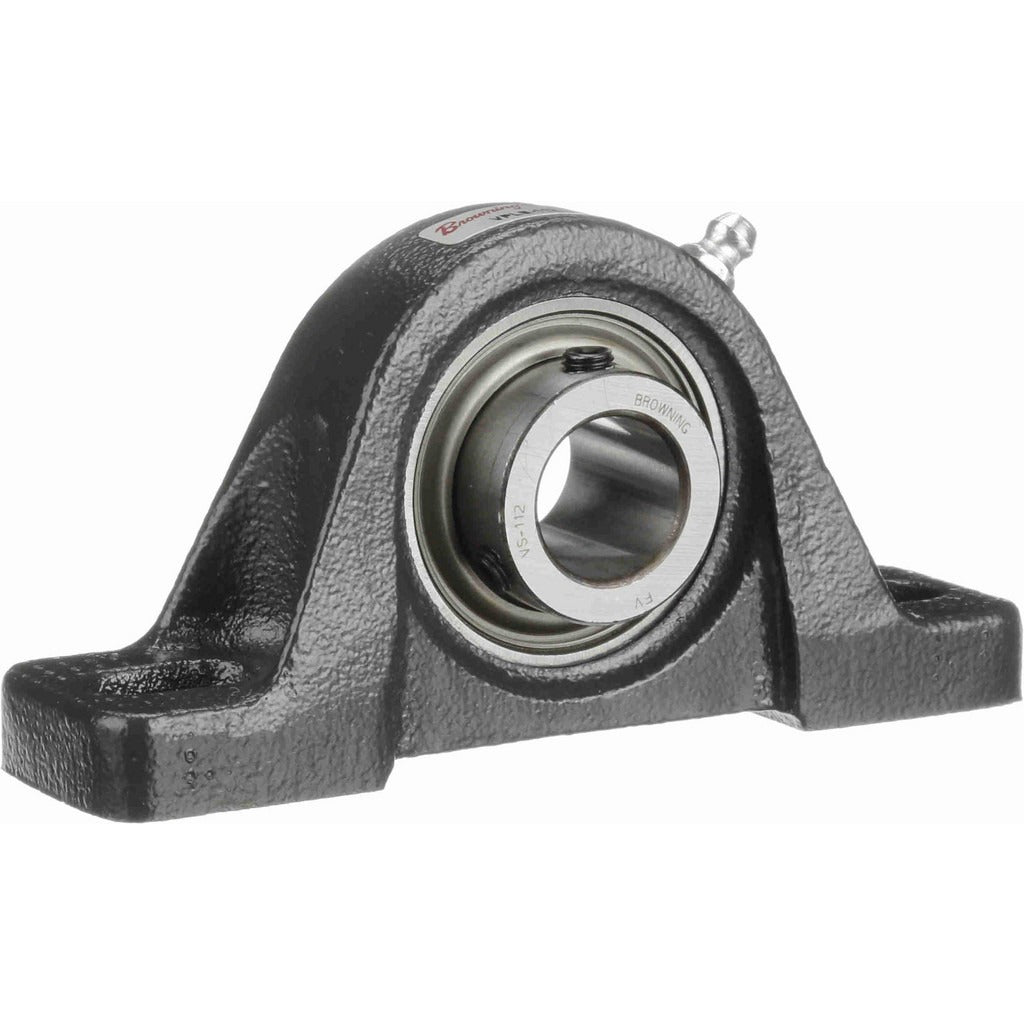

Browning 767561 Pillow Block Bearing 0.75 in Id Vpls 100

Product Description

The BROWNING 767561 is a two-bolt pillow block bearing in the VPLS 100 series, designed for shaft support in industrial and mechanical drive applications. It accepts a 0.75-inch straight bore shaft and is secured with a set screw lock. The cast iron housing encloses a 52100 bearing steel ball insert, delivering a static load capacity of 1,444 pounds and a dynamic load capacity of 2,611 pounds. At a rated maximum of 4,000 RPM, this unit suits moderate- to high-speed rotating equipment. Millwrights, maintenance mechanics, and industrial equipment technicians install this bearing as an OEM-style or maintenance replacement component.

The BROWNING 767561 fits conveyor systems, fan shafts, pump drives, and general power transmission assemblies where a standard two-bolt pillow block mount is required. The 3-25/32-inch center-to-center bolt spacing and 1-1/4-inch base-to-center height conform to industry-standard VPLS 100 series dimensions, making this a direct drop-in replacement in many existing installations. It is suited for both light industrial and commercial mechanical systems where cast iron housings are specified.

Key Features

• 0.75-inch straight bore with set screw locking mechanism for positive shaft retention
• 52100 bearing steel ball insert rated to 4,000 RPM maximum
• Static load capacity of 1,444 pounds and dynamic load capacity of 2,611 pounds
• Cast iron housing provides durability in industrial environments
• Two-bolt mounting with 3-25/32-inch hole center-to-center spacing for easy alignment
• VPLS 100 series standard dimensions for broad replacement compatibility

Compatibility

Designed as an OEM-style replacement pillow block bearing for VPLS 100 series applications requiring a 0.75-inch bore, two-bolt cast iron housing, and set screw shaft lock.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance mechanic. De-energize and lock out all connected drive equipment before removing or installing bearing units. Ensure the mounting surface is flat and clean before torquing fasteners, and verify shaft alignment after mounting to prevent premature wear. Follow applicable ANSI and OSHA lockout/tagout procedures throughout the service procedure.
