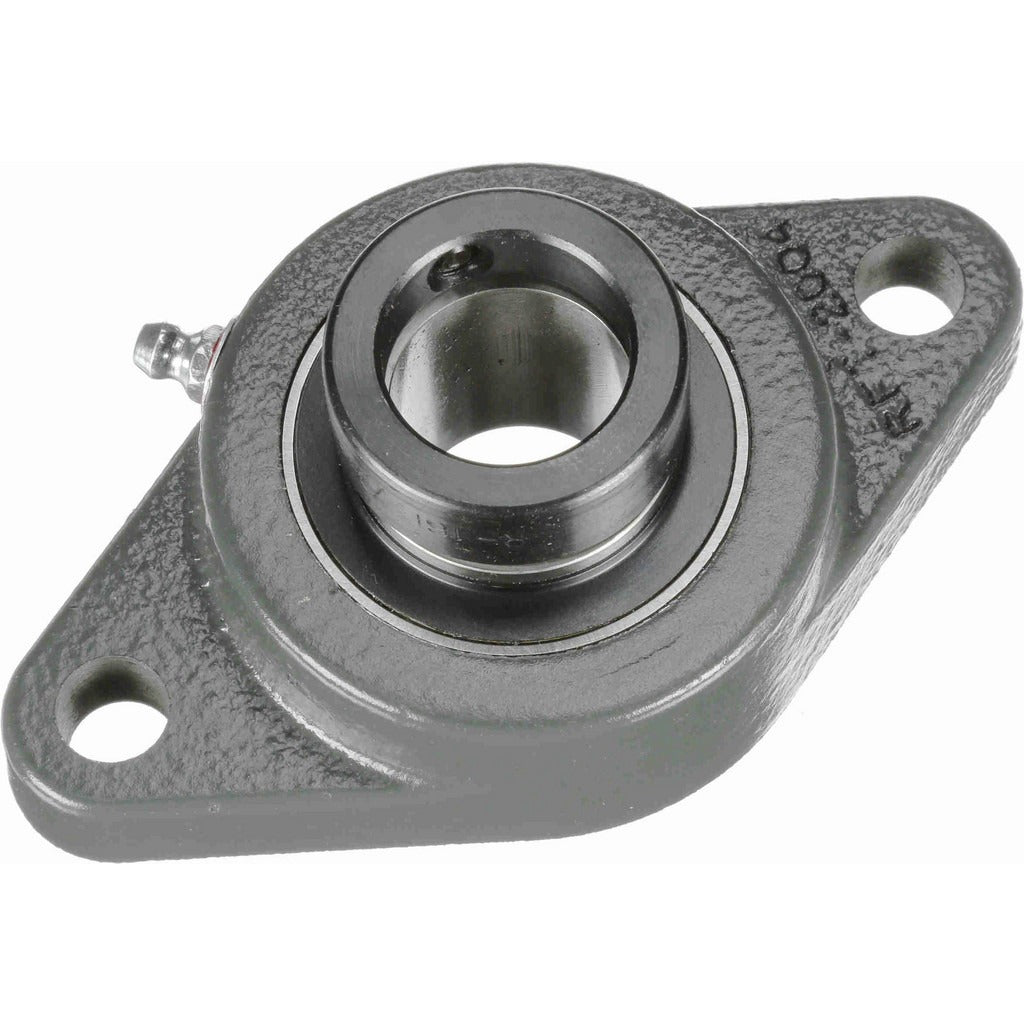

Browning 767361 2-bolt Flange Bearing 1 Inch Id

Product Description

The BROWNING 767361 is a 2-bolt flange bearing unit designed for industrial and mechanical drive applications. It features a 1-inch inside diameter bore with an eccentric collar lock, cast iron housing, and a 52100 steel ball bearing insert. Overall length is 4.875 inches and overall height is 2.75 inches. Static load capacity is 1,651 pounds and dynamic load capacity is 2,801 pounds. The unit requires lubrication and is rated to a maximum of 5,500 RPM. It is installed by millwrights, maintenance technicians, and mechanical contractors on rotating shaft assemblies across a wide range of equipment.

This bearing is suited for light-to-medium duty shaft support in conveyor systems, fans, blowers, augers, and general industrial machinery. The 2-bolt flange mount allows installation on a vertical or horizontal surface where space is limited. The eccentric lock collar provides secure shaft engagement without requiring a keyed shaft. The cast iron housing offers good rigidity in moderate-duty environments. This bearing is a common replacement unit in HVAC fan assemblies, agricultural equipment, and material handling systems.

Key Features

• 1-inch bore inside diameter with eccentric collar lock for tool-free shaft securing
• Cast iron housing provides rigid, durable support in industrial environments
• 52100 steel ball bearing insert rated to 5,500 RPM maximum
• Static load capacity of 1,651 pounds and dynamic load capacity of 2,801 pounds
• 2-bolt flange mount with bolt hole center-to-center spacing of 3.891 inches
• Lubrication fitting required for maintenance greasing

Compatibility

Designed as an OEM-style replacement 2-bolt flange bearing for shaft diameters of 1 inch in conveyor, fan, and general industrial drive applications using the VF2E 20 series mounting envelope.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. De-energize and lock out all power to the equipment before removing the existing bearing. Align the shaft squarely through the bore before tightening the eccentric lock collar in the direction of shaft rotation. Lubricate the bearing insert at initial startup and at intervals appropriate to the duty cycle and operating environment per the equipment manufacturer's schedule.
