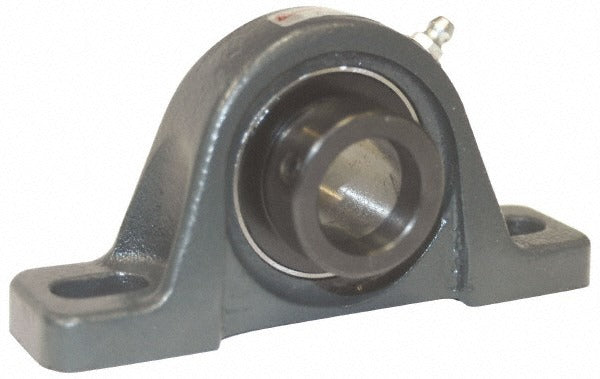

Browning 767306 Pillow Block Bearing 1-1/4 Inch Id

Product Description

The BROWNING 767306 is a VPLE-120 series pillow block bearing designed for light-to-medium duty shaft support applications in industrial and mechanical drive systems. Featuring a 1-1/4 inch inside diameter bore, this unit uses an eccentric locking collar to secure the shaft without requiring keyways or set screws alone. The housing is cast iron, providing rigid support and resistance to moderate impact loads. Static load capacity is rated at 3,493 pounds and dynamic load capacity reaches 5,782 pounds, making this bearing suitable for conveyor drives, fan shafts, and general power transmission equipment. Licensed millwrights, maintenance mechanics, and industrial installers are the primary trades that work with this component.

The BROWNING 767306 fits into standard pillow block mounting configurations found in agricultural equipment, conveyor systems, light manufacturing machinery, and HVAC fan assemblies requiring a two-bolt base mount. The 5 inch distance between mounting hole centers and overall length of 6-3/4 inches are consistent with common OEM mounting footprints in this bore class. The base-to-center height of 1-13/16 inches accommodates standard shaft alignment in typical equipment frames.

Key Features

• 1-1/4 inch bore with eccentric locking collar for positive shaft retention
• 3,493 pound static load capacity and 5,782 pound dynamic load capacity
• Cast iron housing provides rigid, impact-resistant shaft support
• 52100 steel insert for durability in radial load applications
• 5 inch mounting hole center-to-center spacing fits standard two-bolt base layouts
• Overall height of 3-5/8 inches and base-to-center height of 1-13/16 inches for consistent alignment

Compatibility

Designed as an OEM-style replacement or direct-fit pillow block bearing for two-bolt base applications requiring a 1-1/4 inch bore shaft with eccentric collar lock in the VPLE-120 frame size.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. De-energize all drive equipment and lock out the power source before mounting or removing any bearing. Ensure the mounting surface is flat and clean before torquing fasteners, and verify shaft straightness and alignment before tightening the eccentric locking collar. Consult applicable machinery safety standards and plant maintenance procedures for proper bearing seating and re-lubrication intervals.
