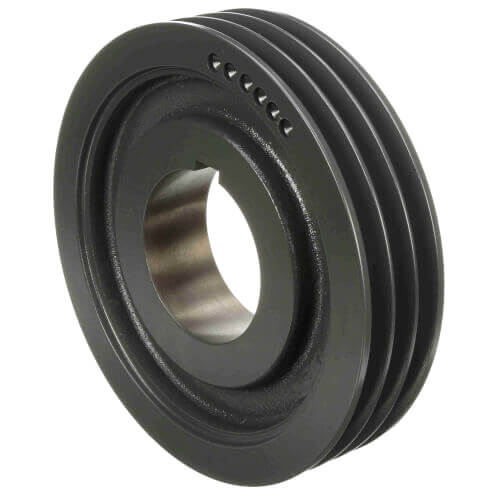

Browning 3R5V103 5V Gripbelt Three Groove Bushed Sheave

Product Description

The Browning 3R5V103 is a 5V Gripbelt three groove bushed sheave designed for mechanical power transmission. This sheave is made from close grain cast iron, providing strength and durability. It is compatible with 5V section belts and requires a split taper bushing for installation.

• Number of grooves: 3
• Outside diameter: 10.30 inches
• Material: Cast iron

Product Highlights

This sheave incorporates a Browning split taper bushing, allowing for a true key-to-key drive to both the shaft and the hub. Each sheave is statically balanced for smooth performance and minimal vibration, ensuring reliable operation in various industrial applications.

Product Information

Standard Information

• Part Number: 3R5V103
• Brand: Browning

Technical Specifications

• Overall Length: 3.359375 inches
• Pitch Diameter: 10.2 inches (5V)
• Material: Cast Iron
• Outside Diameter: 10.3 inches
• Bore (Min): 1.125 inches
• Bushing Series: R1
• Belt Section: 5V
• Weight: 27.28 lbs
