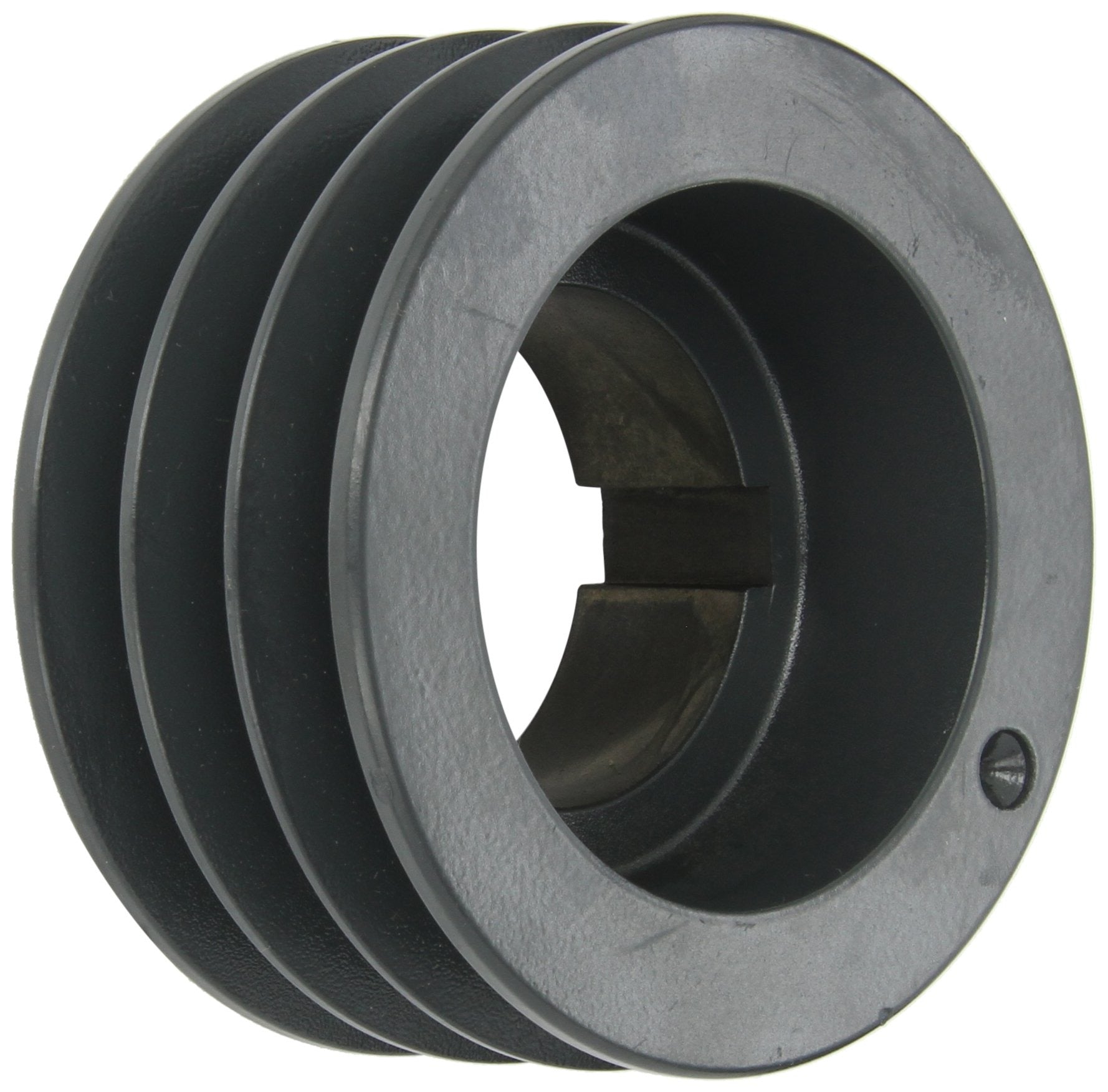

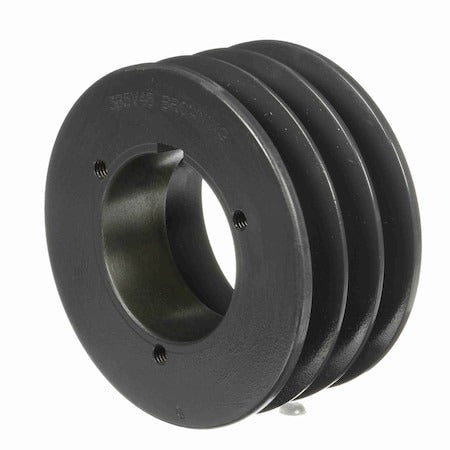

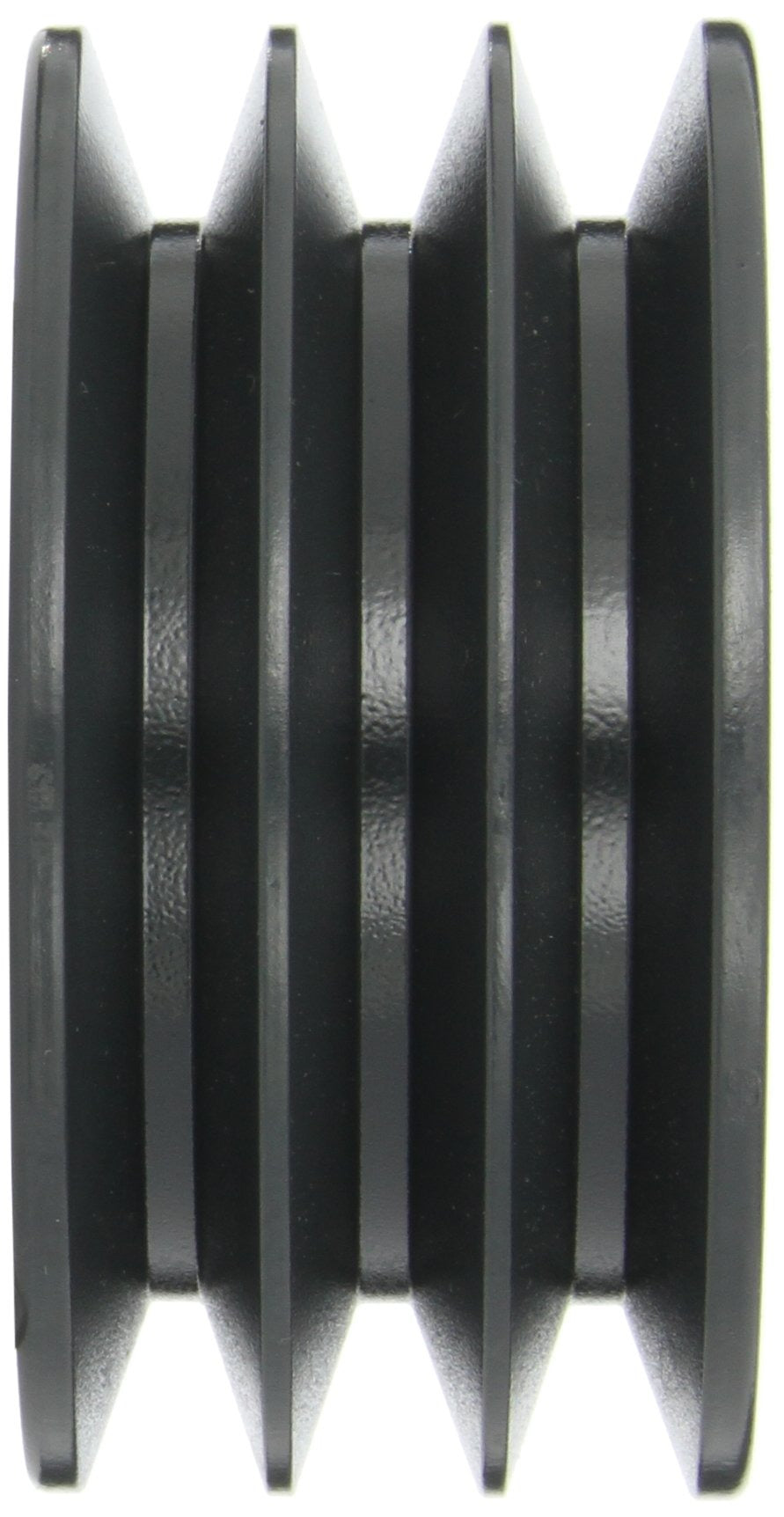

Browning 3B5V48 Split Taper Bushed Multiple Sheave (5.08 in OD / 3 Groove) 3694171

Product Description

Browning 3B5V48 is a cast iron split-taper bushed multiple sheave designed for industrial V-belt power transmission. The 3-groove B5V combination profile accepts A, 4L, B, 5L and 5V belts with pitch diameters of 4.6 in (A), 5.1 in (B) and 4.9 in (5V). It uses a Browning B-series split taper bushing (bushing bore range .500–2.4375 in) and features a solid single-hub construction for fans, blowers, pumps, conveyors and mixers.

• Cast iron, solid pulley construction with one hub and split-taper bushed bore
• Combination B5V grooves accept A, 4L, B, 5L and 5V belts; 3 grooves; outside diameter 5.08 in
• Browning B-series split taper bushing compatible; bushing bore range .500 - 2.4375 in; face width 2.44 in

Product Highlights

3-groove cast iron V-belt sheave with split-taper B-series bushing, 5.08 in OD, combination B5V grooves for multiple belt sections

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 3B5V48
• Country of Origin: Mexico

Technical Specifications

• MPN: 3B5V48
• Model Name: 3B5V-SheaveMaster
• Brand: Browning
• Material: Cast Iron
• Pulley Construction: Solid
• Number of Grooves: 3
• Belt Section: A, 4L, B, 5L, 5V
• Bore Type: Split Taper Bushed
• Bushing Type: Split Taper
• Bushing Series: B
• Bushing Bore Range: .500 - 2.4375 in
• Bore (Min): 0.5 in
• Outside Diameter: 5.08 in
• Pitch Diameter (A): 4.6 in
• Pitch Diameter (B): 5.1 in
• Pitch Diameter (5V): 4.9 in
• Datum Diameter (A): 4.4 in
• Datum Diameter (B): 4.8 in
• Face Width: 2.44 in
• Overall Width: 3.52 in
• Overall Length: 3.5 in
• Length Through Bore: 1.9375 in
• Number of Hubs: 1
• Keyway Size: 0.5 in
• Weight: 5.44 lb
• UPC: 662289034970
