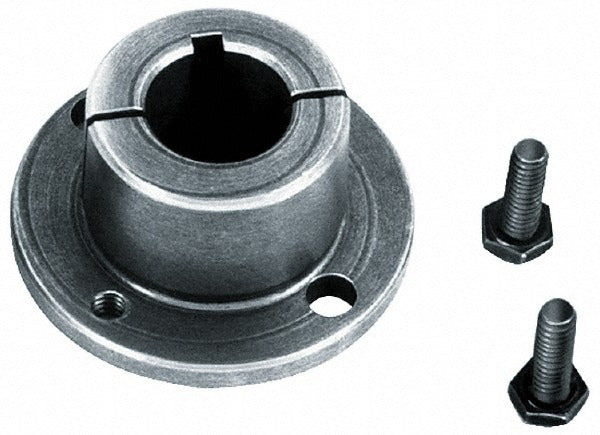

Browning 3695103 Type B Sprocket Bushing 1-5/16 in Bore

Product Description

The BROWNING 3695103 is a Type B sprocket bushing designed to mount sheaves and sprockets onto shafts in mechanical power transmission systems. It features a 1-5/16 inch bore with a 5/16 inch keyway width and 5/32 inch keyway depth, providing a secure, keyed connection that resists rotational slippage under load. The outer diameter ranges from 2.557 to 2.625 inches, making it compatible with B5V sheave configurations. This bushing is a standard component installed by millwrights, maintenance technicians, and HVAC mechanics when assembling belt-drive systems on fans, blowers, pumps, and similar rotating equipment.

This bushing is suited for use in industrial and commercial mechanical drive assemblies where B5V sheaves are specified. Typical applications include belt-driven HVAC fan systems, industrial blowers, and pump drive trains where a reliable, removable shaft-to-sheave connection is required. The Type B bushing profile is a widely recognized standard in split-taper and companion bushing systems, allowing straightforward installation and removal without damaging the sheave or shaft.

Key Features

• 1-5/16 inch bore size for direct shaft mounting
• 5/16 inch keyway width by 5/32 inch keyway depth for positive keyed engagement
• Outer diameter range of 2.557 to 2.625 inches for B5V sheave fitment
• Type B bushing profile compatible with standard B5V sheave bores
• Compact, single-piece construction for straightforward installation and removal

Compatibility

Designed for use with B5V sheaves as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Always de-energize and lock out the drive system before beginning any bushing or sheave work, following LOTO procedures per applicable safety standards. Ensure the shaft and bore are clean and free of burrs before seating the bushing. Do not over-tighten fasteners without reference to applicable torque specifications provided in the manufacturer documentation supplied with the component.
