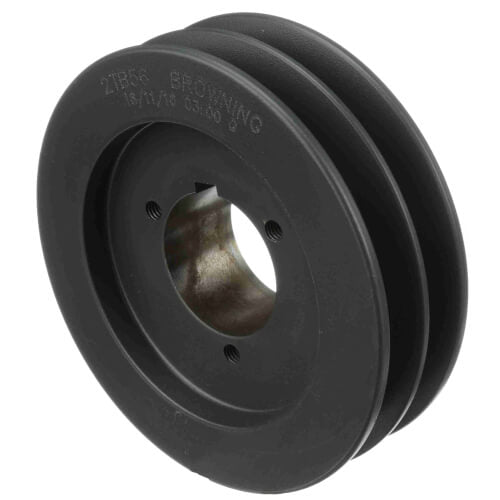

BROWNING 2TB56 2 GROOVE SHEAVE 5.95 INCHES OD

Product Description

The Browning 2TB56 2 Groove Sheave is a premium cast iron product, suitable for A or B type belts, with an outside diameter of 5.95 inches. This sheave uses a P1 bushing and is designed to ensure efficient power transmission in various industrial applications.

• Engineered for durability with high-quality cast iron
• Features two grooves for versatile belt compatibility
• Incorporates split taper bushing for enhanced drive function

Product Highlights

The 2TB56 is statically balanced to provide smooth, vibration-free performance, and it is precisely machined to maintain close tolerances. Its split taper bushing offers a reliable Key-to-Key drive between the shaft and the hub.

Product Information

Standard Information

• Type: Split Taper Sheave
• Bushing Used: P1

Technical Specifications

• Material: Close Grain Cast Iron
• Grooves: 2
• Belt Type: A or B
• Outside Diameter: 5.95 inches
• Weight: 7.82 pounds
• Max Bore: 1.75 inches
• Min Bore: 0.50 inches
