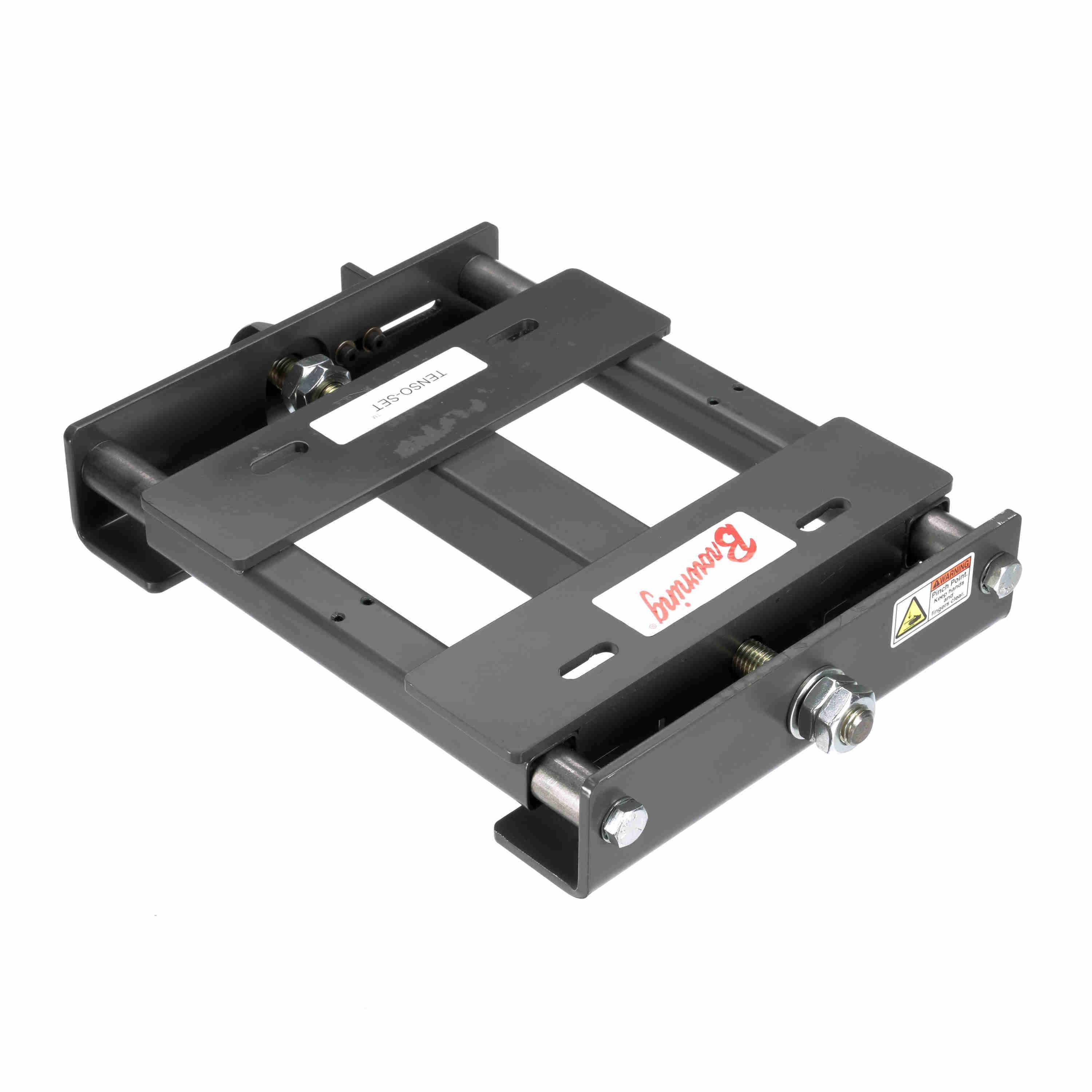

Browning 2779395 Self-Adjusting Quick Release Motor Base

Product Description

The Browning 2779395 is a self-adjusting motor base designed for quick and effective adjustments. This motor base is suitable for NEMA 213 to 215 frame motors frequently used in V-belt drives.

• Features a quick-release mechanism for convenient belt changes.
• The spring-loaded design allows for self-adjusting tension.
• Compatible with specified NEMA frame sizes for versatile use.

Product Highlights

This product enhances efficiency by simplifying the motor adjustment process and accommodating various motor weights.

Product Information

Standard Information

• Brand: Browning
• MPN: 2779395

Technical Specifications

• Product Type: Motor Bases
• Motor Frame Size: 213-215
• Motor Base Type: Spring Loaded Self Adjusting Quick Release
• Frame Type: NEMA
• Type: Self-Tensioning
• Series: 600
• Material: Steel
• Length: 16.33 inches
• Width: 11.36 inches
• Height: 2.56 inches
• Suitable For Use With: 213 to 215 NEMA Frame V-Belt Drives Motor
• Bolt Hole Spacing: 5-3/8 to 7-1/8 inches
• Min. Sheave/Pulley Diameter: 3 inches
• Max. Motor Weight: 175 pounds
